Optical Tables

Optical Tables

Optical Table and Breadboard products are designed to provide a large, vibration isolated and damped work surface from which to conduct optical experiments.  An optical table consists of two main items: a support and an optical tabletop or breadboard.  The support can be in the form of a frame with casters or as four individual cylindrical legs.  The supports can be either elastomeric (rigid) with nominal vibration isolation or pneumatic, which provides the best isolation from floor vibrations.  The tabletop has a matrix of 1/4-20 or M6 threaded holes on the surface and is constructed with a steel honeycomb structure to make it stiff, but with minimal mass. The vibration control provided by optical tables is frequently used in applications such as microscopy, metrology, optical fiber alignment, interferometry, or wherever optical experiments are done.  Optical tables can be found in just about any laser lab but also support bio-medical, life sciences, astronomy, metrology, and semiconductor industries.  OptoSigma offers a wide selection of optical table sizes from stock, desk-type workstations and desktop isolators and shelf accessories.   If one of our many catalog tables does not meet your requirements, send us a request for a custom table.

* For more information, please see: Optical Tables Guide Customization Guide

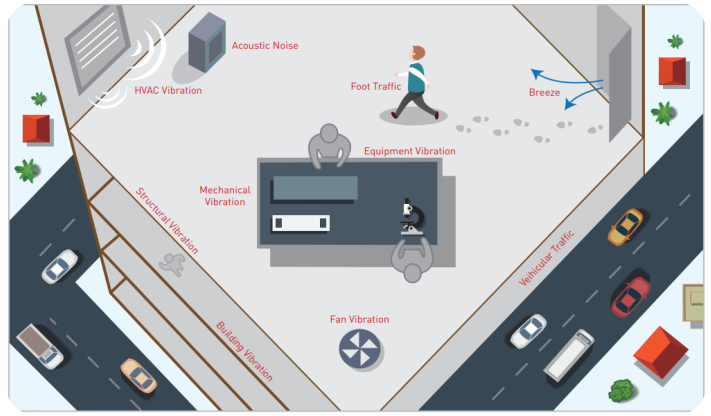

Do you know all the sources of vibration in a laboratory?


vibration
  • Ground Vibrations: Caused by foot traffic, vehicles, HVAC systems, building movement, and even distant construction.
  • Acoustic Noise: Includes sounds that exert force on equipment, such as airflow from fans or HVAC ducts.
  • Ground Vibrations: Refers to vibrations applied directly to the table or equipment from cables, motors, or moving components (e.g., linear stages).

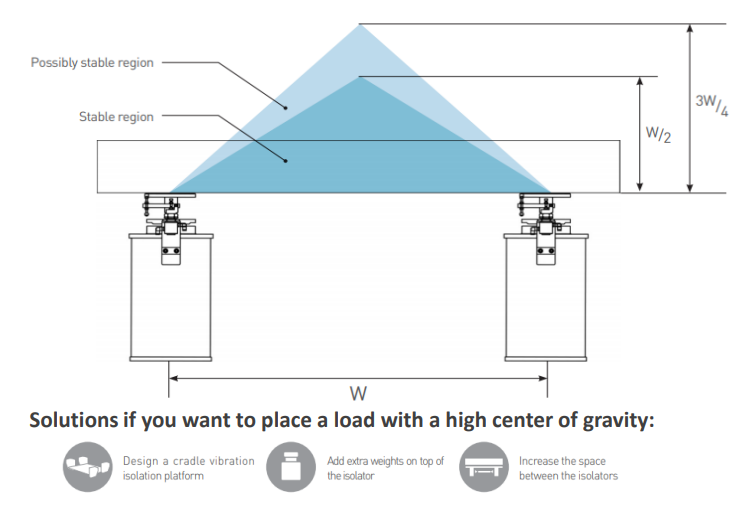

Recommended Height Limits for Setups


limits

Product Comparison


Standard (Passive) Isolation

rigid

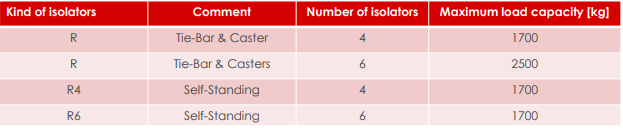

RIGID
  • Cost Effective
  • High Stiffness legs
  • Manual leveling System
  • No Vibration Isolation

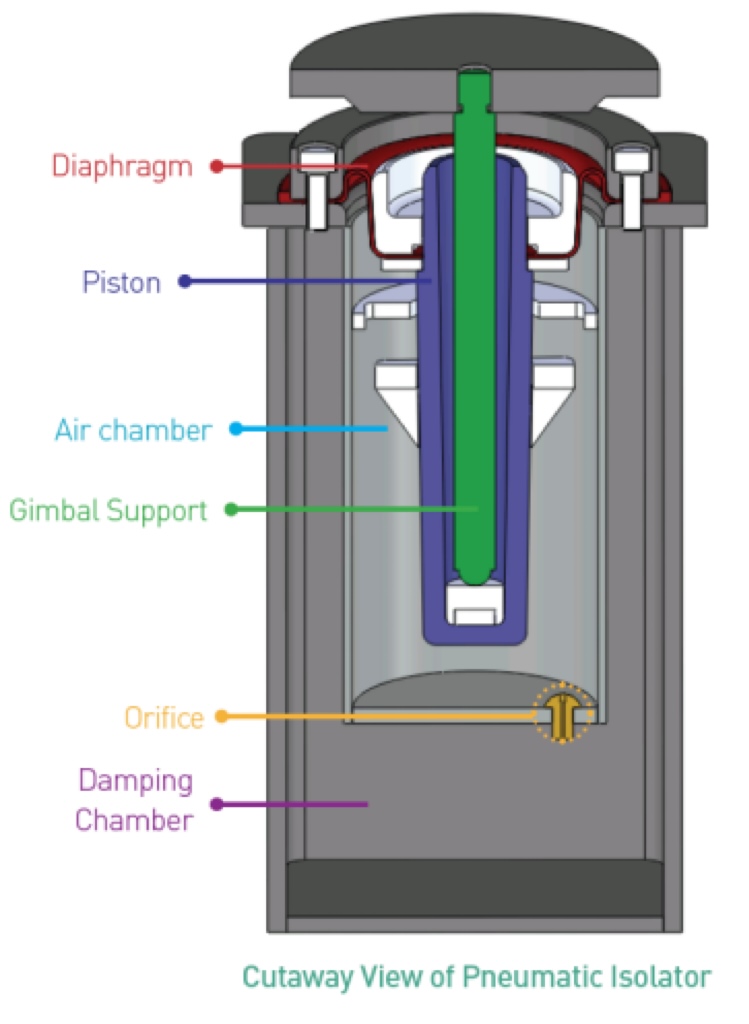

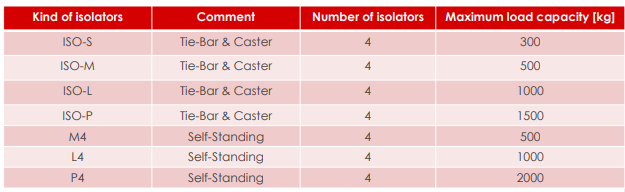

PNEUMATIC
  • Independent Isolators
  • Self-leveling System
  • Dual Chamber Design
  • Vibration Isolation
pneumatic
TECHNICAL NOTES
  • Steel Honeycomb Top
  • 25mm x 25mm M6 Tapped Holes
  • Individual cups for each hole to prevent liquid damage
  • Table dimensions from 0.6m to 5m
  • Breadboard thickness : 25mm; 50mm; 100mm; 200 mm; 300mm; 400mm

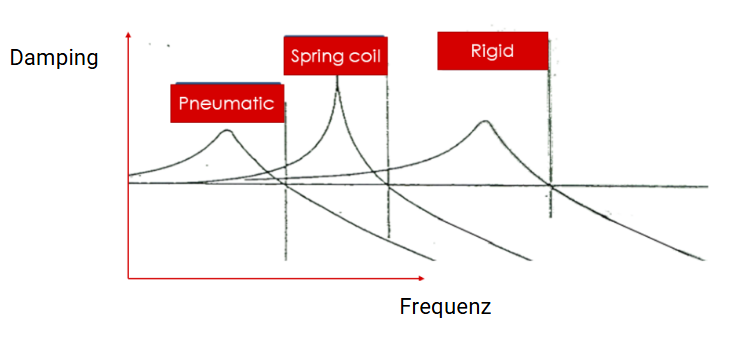

Damping Performance Comparison: Pneumatic, Spring, and Rigid Supports

damping

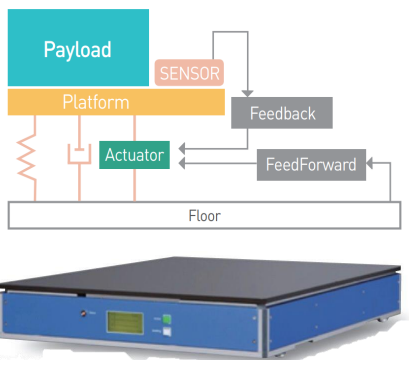

Active Isolation
VS.

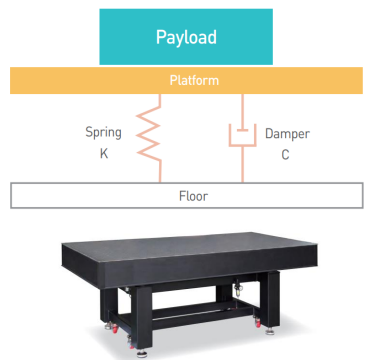

Passives Isolation
active-isolation
passives-isolation

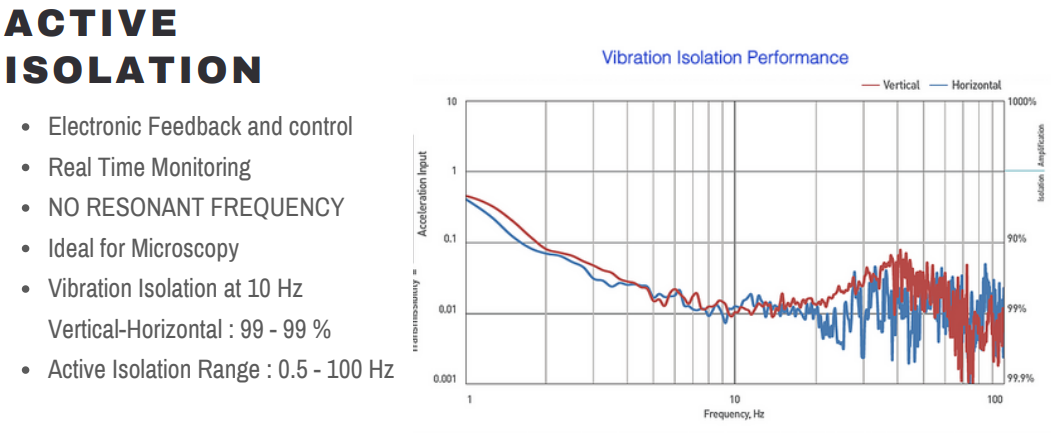

active-isolation-graph

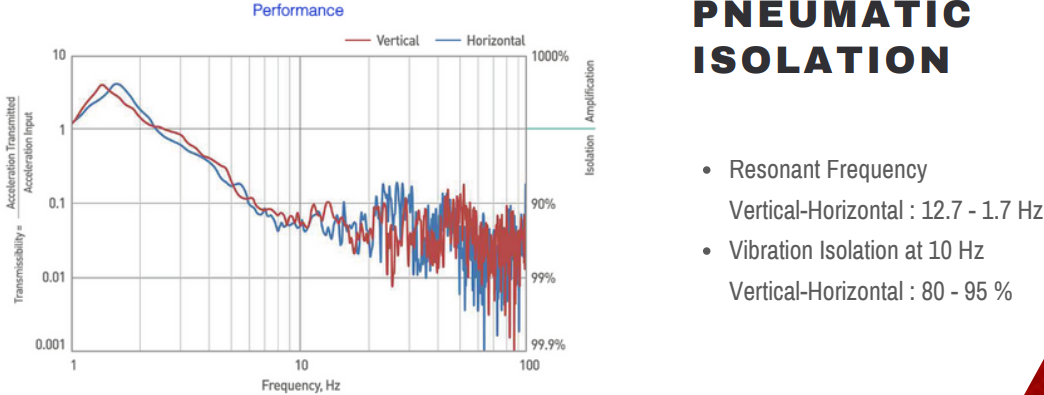

pneumatic-isolation-graph

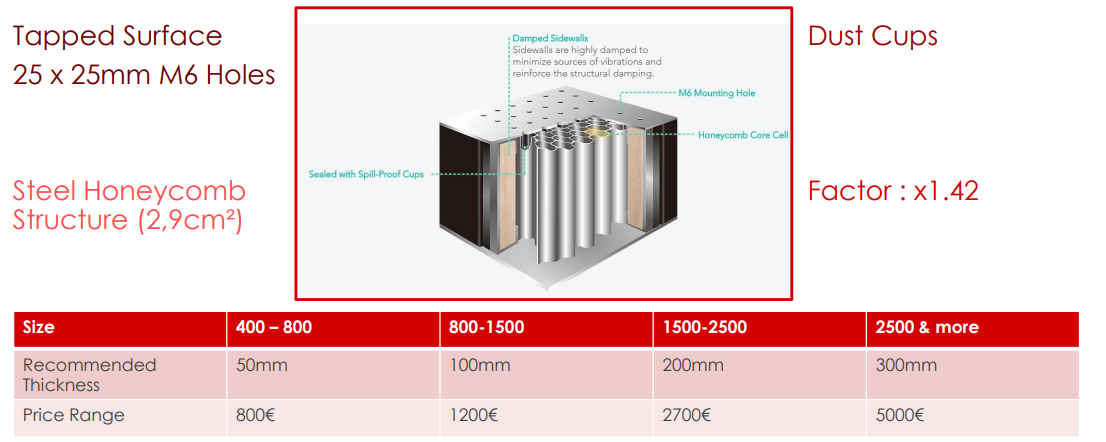

Optical Breadboard


breadboard

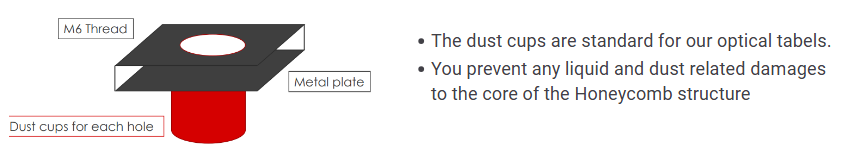

Unique selling point! - Screws and Dust cups

screw anddust cups

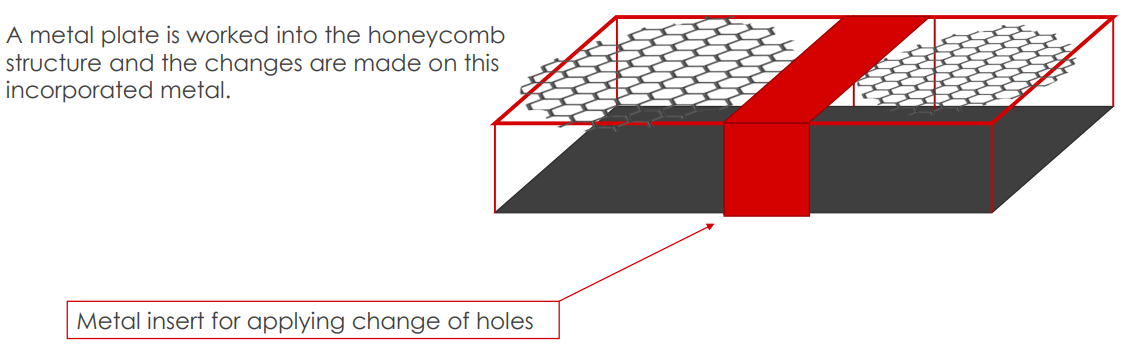

What happens if we want to change holes?

holes

How To Setup an Optical Table?
