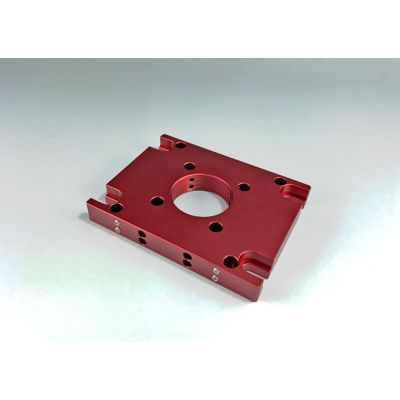

Cage Vertical Plate
C32-VP-M6
A plate for fixing to a vibration isolation table or breadboard with 25mm pitch M6 or 25.4mm pitch 1/4-20UNC screws to build a 30mm or 60mm Cage assembly vertically.
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.
| Name | Cage Vertical Plate |
|---|---|
| Weight | 0.1570kgs |
| Guide |
▶ Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog. ▶ For consultation of optical system using cage system please contact Sales. |
| Attention |
▶If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders. ▶Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder. ▶When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration. |
| Primary material | Aluminum |
| Guide Rod Diameter (Spaceing between rod) | φ6mm （32x32mm）/φ6mm （60x60mm） |
| Compatiblefixing screw | M30.85 P0.75 |
| Installation | Slide from the end of rods |
Out of stock
SKU
C32-VP-M6
€62.60
Customize product
A plate for fixing to a vibration isolation table or breadboard with 25mm pitch M6 or 25.4mm pitch 1/4-20UNC screws to build a 30mm or 60mm Cage assembly vertically.
