Optical Flats (Circle)

OFB - OFBP - OFSQ - OFPXP - OFSQP-C

More about
Optical Flats (Circle)
Out of stock
SKU
OFB - OFBP - OFSQ - OFPXP - OFSQP-C
These Optical Flats are precision polished on one side to a high accuracy and surface quality. They are suitable substrates to be coated with an optical thin film, such as a custom-made mirror.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name

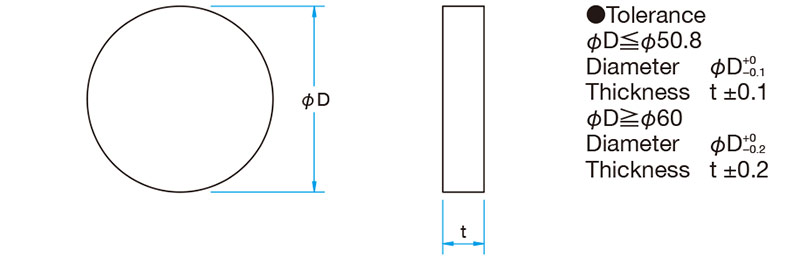

Diameter φD
Material
Rear Surface
Delivery Price Add to cart
details
OFBP-50C08-4
50mm BK7 Polished
6-12 weeks
€78.10
Material BK7
Parallelism ＜3′
Diameter φD φ50mm
Thickness t 8mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-80C12-4
80mm Hard glass Polished
1 week
€160.90
Material Hard glass
Parallelism ＜3′
Diameter φD φ80mm
Thickness t 12mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFBP-50.8C08-10
50.8mm BK7 Polished
1 week
€117.40
Material BK7
Parallelism ＜3′
Diameter φD φ50.8mm
Thickness t 8mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-80C12-10
80mm Hard glass Polished
1 week
€220.20
Material Hard glass
Parallelism ＜3′
Diameter φD φ80mm
Thickness t 12mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-20C05-4
20mm BK7 Ground
2 weeks
€23.00
Material BK7
Parallelism ＜3′
Diameter φD φ20mm
Thickness t 5mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-100C15-4
100mm Hard glass Polished
1 week
€195.50
Material Hard glass
Parallelism ＜3′
Diameter φD φ100mm
Thickness t 15mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFBP-25C05-1
25mm BK7 Polished
6-12 weeks
€19.40
Material BK7
Parallelism ＜3′
Diameter φD φ25mm
Thickness t 5mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-10C03-10
10mm BK7 Ground
1 week
€19.20
Material BK7
Parallelism ＜3′
Diameter φD φ10mm
Thickness t 3mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-130C18-4
130mm Hard glass Polished
6-12 weeks
€305.50
Material Hard glass
Parallelism ＜3′
Diameter φD φ130mm
Thickness t 18mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-10C05-10
10mm BK7 Ground
1 week
€19.40
Material BK7
Parallelism ＜3′
Diameter φD φ10mm
Thickness t 5mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFBP-25C05-20
25mm BK7 Polished
1 week
€62.80
Material BK7
Parallelism ＜3′
Diameter φD φ25mm
Thickness t 5mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-10C05-20
10mm BK7 Ground
1 week
€38.30
Material BK7
Parallelism ＜3′
Diameter φD φ10mm
Thickness t 5mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-150C20-4
150mm Hard glass Polished
6-12 weeks
€547.80
Material Hard glass
Parallelism ＜3′
Diameter φD φ150mm
Thickness t 20mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-12.7C05-10
12.7mm BK7 Ground
1 week
€19.40
Material BK7
Parallelism ＜3′
Diameter φD φ12.7mm
Thickness t 5mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFBP-30C05-4
30mm BK7 Polished
6-12 weeks
€38.70
Material BK7
Parallelism ＜3′
Diameter φD φ30mm
Thickness t 5mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFBP-40C06-1
40mm BK7 Polished
6-12 weeks
€39.10
Material BK7
Parallelism ＜3′
Diameter φD φ40mm
Thickness t 6mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-15C03-10
15mm BK7 Ground
1 week
€18.60
Material BK7
Parallelism ＜3′
Diameter φD φ15mm
Thickness t 3mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFBP-40C06-20
40mm BK7 Polished
1 week
€154.20
Material BK7
Parallelism ＜3′
Diameter φD φ40mm
Thickness t 6mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-15C05-10
15mm BK7 Ground
1 week
€19.40
Material BK7
Parallelism ＜3′
Diameter φD φ15mm
Thickness t 5mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFBP-50C08-10
50mm BK7 Polished
6-12 weeks
€115.60
Material BK7
Parallelism ＜3′
Diameter φD φ50mm
Thickness t 8mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-15C05-20
15mm BK7 Ground
1 week
€38.30
Material BK7
Parallelism ＜3′
Diameter φD φ15mm
Thickness t 5mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFB-20C03-10
20mm BK7 Ground
1 week
€26.90
Material BK7
Parallelism ＜3′
Diameter φD φ20mm
Thickness t 3mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-100C15-1
100mm Hard glass Polished
1 week
€141.10
Material Hard glass
Parallelism ＜3′
Diameter φD φ100mm
Thickness t 15mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-20C05-20
20mm BK7 Ground
1 week
€53.60
Material BK7
Parallelism ＜3′
Diameter φD φ20mm
Thickness t 5mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-130C18-1
130mm Hard glass Polished
6-12 weeks
€226.10
Material Hard glass
Parallelism ＜3′
Diameter φD φ130mm
Thickness t 18mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFSQ-10C06-20
10mm Synthetic fused silica Ground
1 week
€42.60
Material Synthetic fused silica
Parallelism ＜3′
Diameter φD φ10mm
Thickness t 6mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 20−10
Rear surface Ground
details
OFBP-25C05-10
25mm BK7 Polished
6-12 weeks
€31.20
Material BK7
Parallelism ＜3′
Diameter φD φ25mm
Thickness t 5mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFSQ-15C06-20
15mm Synthetic fused silica Ground
1 week
€54.10
Material Synthetic fused silica
Parallelism ＜3′
Diameter φD φ15mm
Thickness t 6mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 20−10
Rear surface Ground
details
OFPXP-150C20-1
150mm Hard glass Polished
6-12 weeks
€313.10
Material Hard glass
Parallelism ＜3′
Diameter φD φ150mm
Thickness t 20mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-60C10-10
60mm Hard glass Polished
1 week
€192.70
Material Hard glass
Parallelism ＜3′
Diameter φD φ60mm
Thickness t 10mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFBP-30C05-1
30mm BK7 Polished
6-12 weeks
€23.50
Material BK7
Parallelism ＜3′
Diameter φD φ30mm
Thickness t 5mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-60C10-20
60mm Hard glass Polished
1 week
€385.60
Material Hard glass
Parallelism ＜3′
Diameter φD φ60mm
Thickness t 10mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFBP-30C05-10
30mm BK7 Polished
6-12 weeks
€46.30
Material BK7
Parallelism ＜3′
Diameter φD φ30mm
Thickness t 5mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFBP-40C06-4
40mm BK7 Polished
6-12 weeks
€62.80
Material BK7
Parallelism ＜3′
Diameter φD φ40mm
Thickness t 6mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFSQP-30C06-20
30mm Synthetic fused silica Polished
1 week
€139.20
Material Synthetic fused silica
Parallelism ＜3′
Diameter φD φ30mm
Thickness t 6mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 20−10
Rear surface Polished
details
OFBP-50C08-1
50mm BK7 Polished
6-12 weeks
€67.00
Material BK7
Parallelism ＜3′
Diameter φD φ50mm
Thickness t 8mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFSQP-40C08-20
40mm Synthetic fused silica Polished
1 week
€234.80
Material Synthetic fused silica
Parallelism ＜3′
Diameter φD φ40mm
Thickness t 8mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 20−10
Rear surface Polished
details
OFBP-50C08-20
50mm BK7 Polished
1 week
€231.30
Material BK7
Parallelism ＜3′
Diameter φD φ50mm
Thickness t 8mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFSQP-50C10-20
50mm Synthetic fused silica Polished
in stock
€333.00
Material Synthetic fused silica
Parallelism ＜3′
Diameter φD φ50mm
Thickness t 10mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 20−10
Rear surface Polished
details
OFPXP-80C12-20
80mm Hard glass Polished
1 week
€495.80
Material Hard glass
Parallelism ＜3′
Diameter φD φ80mm
Thickness t 12mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-20C05-10
20mm BK7 Ground
1 week
€26.90
Material BK7
Parallelism ＜3′
Diameter φD φ20mm
Thickness t 5mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-100C15-10
100mm Hard glass Polished
1 week
€290.00
Material Hard glass
Parallelism ＜3′
Diameter φD φ100mm
Thickness t 15mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFBP-25C05-4
25mm BK7 Polished
6-12 weeks
€23.50
Material BK7
Parallelism ＜3′
Diameter φD φ25mm
Thickness t 5mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-60C10-1
60mm Hard glass Polished
1 week
€78.30
Material Hard glass
Parallelism ＜3′
Diameter φD φ60mm
Thickness t 10mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-130C18-10
130mm Hard glass Polished
6-12 weeks
€547.80
Material Hard glass
Parallelism ＜3′
Diameter φD φ130mm
Thickness t 18mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-60C10-4
60mm Hard glass Polished
6-12 weeks
€118.80
Material Hard glass
Parallelism ＜3′
Diameter φD φ60mm
Thickness t 10mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFBP-25.4C05-10
25.4mm BK7 Polished
6-12 weeks
€31.20
Material BK7
Parallelism ＜3′
Diameter φD φ25.4mm
Thickness t 5mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFSQ-20C06-20
20mm Synthetic fused silica Ground
1 week
€70.50
Material Synthetic fused silica
Parallelism ＜3′
Diameter φD φ20mm
Thickness t 6mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 20−10
Rear surface Ground
details
OFPXP-150C20-10
150mm Hard glass Polished
1 week
€702.80
Material Hard glass
Parallelism ＜3′
Diameter φD φ150mm
Thickness t 20mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFSQP-25C06-20
25mm Synthetic fused silica Polished
1 week
€89.80
Material Synthetic fused silica
Parallelism ＜3′
Diameter φD φ25mm
Thickness t 6mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 20−10
Rear surface Polished
details
OFBP-30C05-20
30mm BK7 Polished
1 week
€92.30
Material BK7
Parallelism ＜3′
Diameter φD φ30mm
Thickness t 5mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFBP-40C06-10
40mm BK7 Polished
6-12 weeks
€74.10
Material BK7
Parallelism ＜3′
Diameter φD φ40mm
Thickness t 6mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-80C12-1
80mm Hard glass Polished
1 week
€108.60
Material Hard glass
Parallelism ＜3′
Diameter φD φ80mm
Thickness t 12mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished

You must be logged in to ask questions

◦ We offer these substrates in a wide variety shapes and sizes, thickness and surface accuracy to allow for selection according to your required specifications.
