Cylindrical Plano-concave Lenses (Synthetic fused silica 10×10mm - 30×50mm)

CLSQ-N

More about
Cylindrical Plano-concave Lenses (Synthetic fused silica 10×10mm - 30×50mm)
Out of stock
SKU
CLSQ-N
Cylindrical plano-concave lens has a concave curvature in the vertical direction and has no curvature in the horizontal direction. When used in combination with a plano-convex cylindrical lens an elliptical shaped beam can be sharped into a circular beam for use in semiconductor and other laser applications.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name
A x B
Focal length
Delivery Price Add to cart
details
CLSQ-2040-25N
20mm x 40mm 25mm
5-8 weeks
€375.47
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10

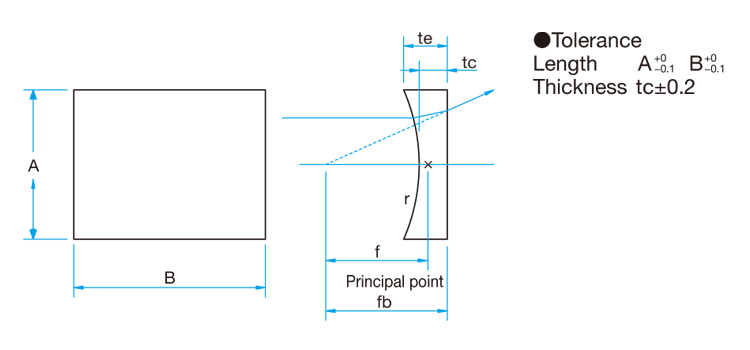

A×B 20×40mm
Focal length f −25mm
Edge thickness te 7mm
Center thickness tc 1.2mm
Back focal length fb −25.8mm
Radius of curvature r 11.5mm
details
CLSQ-3050-300N
30mm x 50mm 300mm
5-8 weeks
€356.11
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×50mm
Focal length f −300mm
Edge thickness te 5mm
Center thickness tc 4.2mm
Back focal length fb −302.9mm
Radius of curvature r 138mm
details
CLSQ-1010-25N
10mm x 10mm 25mm
1 week
€221.41
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 10×10mm
Focal length f −25mm
Edge thickness te 3mm
Center thickness tc 1.9mm
Back focal length fb −26.3mm
Radius of curvature r 11.5mm
details
CLSQ-2040-50N
20mm x 40mm 50mm
5-8 weeks
€284.15
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×40mm
Focal length f −50mm
Edge thickness te 4mm
Center thickness tc 1.7mm
Back focal length fb −51.2mm
Radius of curvature r 23mm
details
CLSQ-1020-15N
10mm x 20mm 15mm
5-8 weeks
€297.99
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 10×20mm
Focal length f −15mm
Edge thickness te 4mm
Center thickness tc 1.9mm
Back focal length fb −16.3mm
Radius of curvature r 6.9mm
details
CLSQ-2040-80N
20mm x 40mm 80mm
5-8 weeks
€284.15
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×40mm
Focal length f −80mm
Edge thickness te 4mm
Center thickness tc 2.6mm
Back focal length fb −81.8mm
Radius of curvature r 36.8mm
details
CLSQ-1020-30N
10mm x 20mm 30mm
5-8 weeks
€250.01
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 10×20mm
Focal length f −30mm
Edge thickness te 3mm
Center thickness tc 2.1mm
Back focal length fb −31.4mm
Radius of curvature r 13.8mm
details
CLSQ-2050-150N
20mm x 50mm 150mm
5-8 weeks
€303.51
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×50mm
Focal length f −150mm
Edge thickness te 4mm
Center thickness tc 3.3mm
Back focal length fb −152.2mm
Radius of curvature r 69mm
details
CLSQ-1515-25N
15mm x 15mm 25mm
5-8 weeks
€269.39
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 15×15mm
Focal length f −25mm
Edge thickness te 5mm
Center thickness tc 2.2mm
Back focal length fb −26.5mm
Radius of curvature r 11.5mm
details
CLSQ-2050-300N
20mm x 50mm 300mm
5-8 weeks
€297.99
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×50mm
Focal length f −300mm
Edge thickness te 4mm
Center thickness tc 3.6mm
Back focal length fb −302.5mm
Radius of curvature r 138mm
details
CLSQ-1525-20N
15mm x 25mm 20mm
5-8 weeks
€317.35
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 15×25mm
Focal length f −20mm
Edge thickness te 6mm
Center thickness tc 2.1mm
Back focal length fb −21.5mm
Radius of curvature r 9.2mm
details
CLSQ-3030-70N
30mm x 30mm 70mm
1 week
€317.35
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×30mm
Focal length f −70mm
Edge thickness te 6mm
Center thickness tc 2.3mm
Back focal length fb −71.6mm
Radius of curvature r 32.2mm
details
CLSQ-1525-40N
15mm x 25mm 40mm
5-8 weeks
€279.53
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 15×25mm
Focal length f −40mm
Edge thickness te 4mm
Center thickness tc 2.4mm
Back focal length fb −41.6mm
Radius of curvature r 18.4mm
details
CLSQ-3030-130N
30mm x 30mm 130mm
1 week
€317.35
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×30mm
Focal length f −130mm
Edge thickness te 5mm
Center thickness tc 3.1mm
Back focal length fb −132.1mm
Radius of curvature r 59.8mm
details
CLSQ-2020-40N
20mm x 20mm 40mm
5-8 weeks
€269.39
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×20mm
Focal length f −40mm
Edge thickness te 5mm
Center thickness tc 2mm
Back focal length fb −41.4mm
Radius of curvature r 18.4mm
details
CLSQ-3030-250N
30mm x 30mm 250mm
1 week
€317.35
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×30mm
Focal length f −250mm
Edge thickness te 5mm
Center thickness tc 4mm
Back focal length fb −252.8mm
Radius of curvature r 115mm
details
CLSQ-2020-70N
20mm x 20mm 70mm
1 week
€245.39
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×20mm
Focal length f −70mm
Edge thickness te 4mm
Center thickness tc 2.4mm
Back focal length fb −71.6mm
Radius of curvature r 32.2mm
details
CLSQ-3040-60N
30mm x 40mm 60mm
5-8 weeks
€336.73
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×40mm
Focal length f −60mm
Edge thickness te 6mm
Center thickness tc 1.6mm
Back focal length fb −61.1mm
Radius of curvature r 27.6mm
details
CLSQ-2020-130N
20mm x 20mm 130mm
5-8 weeks
€236.17
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×20mm
Focal length f −130mm
Edge thickness te 4mm
Center thickness tc 3.2mm
Back focal length fb −132.2mm
Radius of curvature r 59.8mm
details
CLSQ-3050-100N
30mm x 50mm 100mm
1 week
€356.11
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×50mm
Focal length f −100mm
Edge thickness te 5mm
Center thickness tc 2.5mm
Back focal length fb −101.7mm
Radius of curvature r 46mm
details
CLSQ-2020-250N
20mm x 20mm 250mm
1 week
€230.63
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×20mm
Focal length f −250mm
Edge thickness te 4mm
Center thickness tc 3.6mm
Back focal length fb −252.4mm
Radius of curvature r 115mm
details
CLSQ-3050-200N
30mm x 50mm 200mm
5-8 weeks
€356.11
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×50mm
Focal length f −200mm
Edge thickness te 5mm
Center thickness tc 3.8mm
Back focal length fb −202.6mm
Radius of curvature r 92mm
details
CLSQ-1010-15N
10mm x 10mm 15mm
1 week
€260.15
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 10×10mm
Focal length f −15mm
Edge thickness te 4mm
Center thickness tc 1.9mm
Back focal length fb −16.3mm
Radius of curvature r 6.9mm
details
CLSQ-2040-30N
20mm x 40mm 30mm
5-8 weeks
€346.87
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×40mm
Focal length f −30mm
Edge thickness te 6mm
Center thickness tc 1.7mm
Back focal length fb −31.2mm
Radius of curvature r 13.8mm
details
CLSQ-1010-30N
10mm x 10mm 30mm
1 week
€211.27
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 10×10mm
Focal length f −30mm
Edge thickness te 3mm
Center thickness tc 2.1mm
Back focal length fb −31.4mm
Radius of curvature r 13.8mm
details
CLSQ-2040-60N
20mm x 40mm 60mm
5-8 weeks
€284.15
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×40mm
Focal length f −60mm
Edge thickness te 4mm
Center thickness tc 2.1mm
Back focal length fb −61.5mm
Radius of curvature r 27.6mm
details
CLSQ-1020-20N
10mm x 20mm 20mm
5-8 weeks
€279.53
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 10×20mm
Focal length f −20mm
Edge thickness te 3mm
Center thickness tc 1.5mm
Back focal length fb −21.0mm
Radius of curvature r 9.2mm
details
CLSQ-2050-100N
20mm x 50mm 100mm
5-8 weeks
€312.75
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×50mm
Focal length f −100mm
Edge thickness te 4mm
Center thickness tc 2.9mm
Back focal length fb −102.0mm
Radius of curvature r 46mm
details
CLSQ-1020-40N
10mm x 20mm 40mm
5-8 weeks
€250.01
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 10×20mm
Focal length f −40mm
Edge thickness te 3mm
Center thickness tc 2.3mm
Back focal length fb −41.6mm
Radius of curvature r 18.4mm
details
CLSQ-2050-200N
20mm x 50mm 200mm
5-8 weeks
€297.99
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×50mm
Focal length f −200mm
Edge thickness te 4mm
Center thickness tc 3.5mm
Back focal length fb −202.4mm
Radius of curvature r 92mm
details
CLSQ-1515-30N
15mm x 15mm 30mm
5-8 weeks
€250.01
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 15×15mm
Focal length f −30mm
Edge thickness te 4mm
Center thickness tc 1.8mm
Back focal length fb −31.2mm
Radius of curvature r 13.8mm
details
CLSQ-3030-50N
30mm x 30mm 50mm
5-8 weeks
€317.35
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×30mm
Focal length f −50mm
Edge thickness te 7mm
Center thickness tc 1.4mm
Back focal length fb −51.0mm
Radius of curvature r 23mm
details
CLSQ-1525-25N
15mm x 25mm 25mm
1 week
€294.29
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 15×25mm
Focal length f −25mm
Edge thickness te 5mm
Center thickness tc 2.2mm
Back focal length fb −26.5mm
Radius of curvature r 11.5mm
details
CLSQ-3030-80N
30mm x 30mm 80mm
5-8 weeks
€317.35
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×30mm
Focal length f −80mm
Edge thickness te 5mm
Center thickness tc 1.8mm
Back focal length fb −81.2mm
Radius of curvature r 36.8mm
details
CLSQ-2020-25N
20mm x 20mm 25mm
1 week
€308.13
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×20mm
Focal length f −25mm
Edge thickness te 7mm
Center thickness tc 1.2mm
Back focal length fb −25.8mm
Radius of curvature r 11.5mm
details
CLSQ-3030-150N
30mm x 30mm 150mm
1 week
€317.35
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×30mm
Focal length f −150mm
Edge thickness te 5mm
Center thickness tc 3.3mm
Back focal length fb −152.3mm
Radius of curvature r 69mm
details
CLSQ-2020-50N
20mm x 20mm 50mm
1 week
€245.39
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×20mm
Focal length f −50mm
Edge thickness te 4mm
Center thickness tc 1.7mm
Back focal length fb −51.2mm
Radius of curvature r 23mm
details
CLSQ-3030-300N
30mm x 30mm 300mm
1 week
€317.35
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×30mm
Focal length f −300mm
Edge thickness te 5mm
Center thickness tc 4.2mm
Back focal length fb −302.9mm
Radius of curvature r 138mm
details
CLSQ-2020-80N
20mm x 20mm 80mm
5-8 weeks
€245.39
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×20mm
Focal length f −80mm
Edge thickness te 4mm
Center thickness tc 2.6mm
Back focal length fb −81.8mm
Radius of curvature r 36.8mm
details
CLSQ-3040-70N
30mm x 40mm 70mm
5-8 weeks
€336.73
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×40mm
Focal length f −70mm
Edge thickness te 6mm
Center thickness tc 2.3mm
Back focal length fb −71.6mm
Radius of curvature r 32.2mm
details
CLSQ-2020-150N
20mm x 20mm 150mm
1 week
€236.17
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×20mm
Focal length f −150mm
Edge thickness te 4mm
Center thickness tc 3.3mm
Back focal length fb −152.2mm
Radius of curvature r 69mm
details
CLSQ-3050-130N
30mm x 50mm 130mm
1 week
€356.11
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×50mm
Focal length f −130mm
Edge thickness te 5mm
Center thickness tc 3.1mm
Back focal length fb −132.1mm
Radius of curvature r 59.8mm
details
CLSQ-2020-300N
20mm x 20mm 300mm
5-8 weeks
€230.63
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×20mm
Focal length f −300mm
Edge thickness te 4mm
Center thickness tc 3.6mm
Back focal length fb −302.5mm
Radius of curvature r 138mm
details
CLSQ-3050-250N
30mm x 50mm 250mm
5-8 weeks
€356.11
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×50mm
Focal length f −250mm
Edge thickness te 5mm
Center thickness tc 4mm
Back focal length fb −252.8mm
Radius of curvature r 115mm
details
CLSQ-1010-20N
10mm x 10mm 20mm
1 week
€240.79
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 10×10mm
Focal length f −20mm
Edge thickness te 3mm
Center thickness tc 1.5mm
Back focal length fb −21.0mm
Radius of curvature r 9.2mm
details
CLSQ-2040-40N
20mm x 40mm 40mm
1 week
€308.13
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×40mm
Focal length f −40mm
Edge thickness te 5mm
Center thickness tc 2mm
Back focal length fb −41.4mm
Radius of curvature r 18.4mm
details
CLSQ-1010-40N
10mm x 10mm 40mm
5-8 weeks
€211.27
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 10×10mm
Focal length f −40mm
Edge thickness te 3mm
Center thickness tc 2.3mm
Back focal length fb −41.6mm
Radius of curvature r 18.4mm
details
CLSQ-2040-70N
20mm x 40mm 70mm
5-8 weeks
€284.15
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×40mm
Focal length f −70mm
Edge thickness te 4mm
Center thickness tc 2.4mm
Back focal length fb −71.6mm
Radius of curvature r 32.2mm
details
CLSQ-1020-25N
10mm x 20mm 25mm
1 week
€264.77
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 10×20mm
Focal length f −25mm
Edge thickness te 3mm
Center thickness tc 1.9mm
Back focal length fb −26.3mm
Radius of curvature r 11.5mm
details
CLSQ-2050-130N
20mm x 50mm 130mm
1 week
€303.51
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×50mm
Focal length f −130mm
Edge thickness te 4mm
Center thickness tc 3.2mm
Back focal length fb −132.2mm
Radius of curvature r 59.8mm
details
CLSQ-1515-20N
15mm x 15mm 20mm
5-8 weeks
€288.75
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 15×15mm
Focal length f −20mm
Edge thickness te 6mm
Center thickness tc 2.1mm
Back focal length fb −21.5mm
Radius of curvature r 9.2mm
details
CLSQ-2050-250N
20mm x 50mm 250mm
5-8 weeks
€297.99
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×50mm
Focal length f −250mm
Edge thickness te 4mm
Center thickness tc 3.6mm
Back focal length fb −252.4mm
Radius of curvature r 115mm
details
CLSQ-1515-40N
15mm x 15mm 40mm
5-8 weeks
€250.01
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 15×15mm
Focal length f −40mm
Edge thickness te 4mm
Center thickness tc 2.4mm
Back focal length fb −41.6mm
Radius of curvature r 18.4mm
details
CLSQ-3030-60N
30mm x 30mm 60mm
1 week
€317.35
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×30mm
Focal length f −60mm
Edge thickness te 6mm
Center thickness tc 1.6mm
Back focal length fb −61.1mm
Radius of curvature r 27.6mm
details
CLSQ-1525-30N
15mm x 25mm 30mm
5-8 weeks
€279.53
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 15×25mm
Focal length f −30mm
Edge thickness te 4mm
Center thickness tc 1.8mm
Back focal length fb −31.2mm
Radius of curvature r 13.8mm
details
CLSQ-3030-100N
30mm x 30mm 100mm
1 week
€317.35
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×30mm
Focal length f −100mm
Edge thickness te 5mm
Center thickness tc 2.5mm
Back focal length fb −101.7mm
Radius of curvature r 46mm
details
CLSQ-2020-30N
20mm x 20mm 30mm
1 week
€279.53
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×20mm
Focal length f −30mm
Edge thickness te 6mm
Center thickness tc 1.7mm
Back focal length fb −31.2mm
Radius of curvature r 13.8mm
details
CLSQ-3030-200N
30mm x 30mm 200mm
5-8 weeks
€317.35
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×30mm
Focal length f −200mm
Edge thickness te 5mm
Center thickness tc 3.8mm
Back focal length fb −202.6mm
Radius of curvature r 92mm
details
CLSQ-2020-60N
20mm x 20mm 60mm
1 week
€245.39
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×20mm
Focal length f −60mm
Edge thickness te 4mm
Center thickness tc 2.1mm
Back focal length fb −61.5mm
Radius of curvature r 27.6mm
details
CLSQ-3040-50N
30mm x 40mm 50mm
1 week
€336.73
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×40mm
Focal length f −50mm
Edge thickness te 7mm
Center thickness tc 1.4mm
Back focal length fb −51.0mm
Radius of curvature r 23mm
details
CLSQ-2020-100N
20mm x 20mm 100mm
1 week
€245.39
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×20mm
Focal length f −100mm
Edge thickness te 4mm
Center thickness tc 2.9mm
Back focal length fb −102.0mm
Radius of curvature r 46mm
details
CLSQ-3040-80N
30mm x 40mm 80mm
1 week
€336.73
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×40mm
Focal length f −80mm
Edge thickness te 5mm
Center thickness tc 1.8mm
Back focal length fb −81.2mm
Radius of curvature r 36.8mm
details
CLSQ-2020-200N
20mm x 20mm 200mm
1 week
€230.63
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 20×20mm
Focal length f −200mm
Edge thickness te 4mm
Center thickness tc 3.5mm
Back focal length fb −202.4mm
Radius of curvature r 92mm
details
CLSQ-3050-150N
30mm x 50mm 150mm
5-8 weeks
€356.11
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index 1.46
Coating Uncoated
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
A×B 30×50mm
Focal length f −150mm
Edge thickness te 5mm
Center thickness tc 3.3mm
Back focal length fb −152.3mm
Radius of curvature r 69mm

You must be logged in to ask questions

◦Plano Concave Cylindrical lenses are available in highstrength synthetic fused silica which has high laser damage threshold used in applications with 350nm ultraviolet light.
◦Cylindrical lenses are often used in an optical system to change the shape and aspect ratio of the illumination light beam.
