Cylindrical Plano-concave Lenses BK7 Coated IR1 633-1064nm

CLB-N-IR1

Cylindrical Plano-concave Lenses BK7 Coated IR1 633-1064nm
Out of stock
SKU
CLB-N-IR1
Cylindrical plano-concave lens has a concave curvature in the vertical direction and has no curvature in the horizontal direction. When used in combination with a plano-convex cylindrical lens an elliptical shaped beam can be sharped into a circular beam for use in semiconductor and other laser applications.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name
A x B
Focal length
Delivery Price Add to cart
details
CLB-2040-60NIR1
20mm x 40mm 60mm
5-8 weeks
€260.15
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm

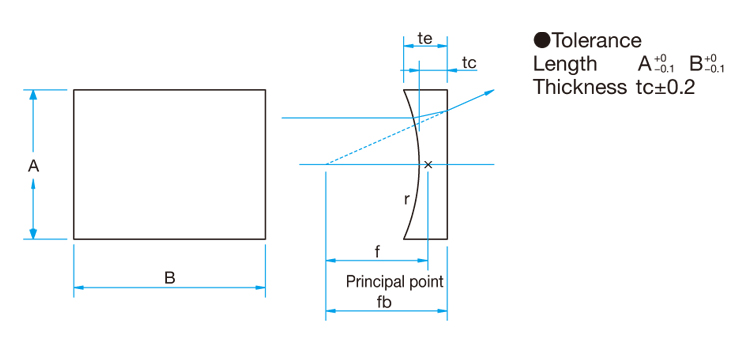

A×B 20×40mm
Focal length f −60mm
Edge thickness te 4mm
Center thickness tc 2.4mm
Back focal length fb −61.5mm
Radius of curvature r 31.14mm
details
CLB-1020-40NIR1
10mm x 20mm 40mm
5-8 weeks
€210.34
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 10×20mm
Focal length f −40mm
Edge thickness te 3mm
Center thickness tc 2.4mm
Back focal length fb −41.6mm
Radius of curvature r 20.76mm
details
CLB-2050-100NIR1
20mm x 50mm 100mm
5-8 weeks
€276.76
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×50mm
Focal length f −100mm
Edge thickness te 4mm
Center thickness tc 3mm
Back focal length fb −102.0mm
Radius of curvature r 51.9mm
details
CLB-1515-30NIR1
15mm x 15mm 30mm
5-8 weeks
€200.20
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 15×15mm
Focal length f −30mm
Edge thickness te 4mm
Center thickness tc 2.1mm
Back focal length fb −31.4mm
Radius of curvature r 15.57mm
details
CLB-2050-200NIR1
20mm x 50mm 200mm
5-8 weeks
€256.48
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×50mm
Focal length f −200mm
Edge thickness te 4mm
Center thickness tc 3.5mm
Back focal length fb −202.3mm
Radius of curvature r 103.8mm
details
CLB-1525-25NIR1
15mm x 25mm 25mm
5-8 weeks
€223.26
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 15×25mm
Focal length f −25mm
Edge thickness te 5mm
Center thickness tc 2.6mm
Back focal length fb −26.7mm
Radius of curvature r 12.98mm
details
CLB-3030-50NIR1
30mm x 30mm 50mm
1 week
€250.01
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×30mm
Focal length f −50mm
Edge thickness te 7mm
Center thickness tc 2.2mm
Back focal length fb −51.5mm
Radius of curvature r 25.95mm
details
CLB-2020-25NIR1
20mm x 20mm 25mm
5-8 weeks
€214.04
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×20mm
Focal length f −25mm
Edge thickness te 7mm
Center thickness tc 2.3mm
Back focal length fb −26.5mm
Radius of curvature r 12.98mm
details
CLB-3030-80NIR1
30mm x 30mm 80mm
5-8 weeks
€237.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×30mm
Focal length f −80mm
Edge thickness te 5mm
Center thickness tc 2.2mm
Back focal length fb −81.4mm
Radius of curvature r 41.52mm
details
CLB-2020-50NIR1
20mm x 20mm 50mm
5-8 weeks
€214.04
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×20mm
Focal length f −50mm
Edge thickness te 4mm
Center thickness tc 2mm
Back focal length fb −51.3mm
Radius of curvature r 25.95mm
details
CLB-3030-150NIR1
30mm x 30mm 150mm
1 week
€237.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×30mm
Focal length f −150mm
Edge thickness te 5mm
Center thickness tc 3.5mm
Back focal length fb −152.3mm
Radius of curvature r 77.85mm
details
CLB-2020-80NIR1
20mm x 20mm 80mm
5-8 weeks
€200.20
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×20mm
Focal length f −80mm
Edge thickness te 4mm
Center thickness tc 2.8mm
Back focal length fb −81.8mm
Radius of curvature r 41.52mm
details
CLB-3030-300NIR1
30mm x 30mm 300mm
1 week
€237.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×30mm
Focal length f −300mm
Edge thickness te 5mm
Center thickness tc 4.3mm
Back focal length fb −302.8mm
Radius of curvature r 155.7mm
details
CLB-2020-150NIR1
20mm x 20mm 150mm
5-8 weeks
€186.34
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×20mm
Focal length f −150mm
Edge thickness te 4mm
Center thickness tc 3.4mm
Back focal length fb −152.2mm
Radius of curvature r 77.85mm
details
CLB-3040-70NIR1
30mm x 40mm 70mm
5-8 weeks
€273.99
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×40mm
Focal length f −70mm
Edge thickness te 5mm
Center thickness tc 1.8mm
Back focal length fb −71.2mm
Radius of curvature r 36.33mm
details
CLB-2020-300NIR1
20mm x 20mm 300mm
5-8 weeks
€186.34
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×20mm
Focal length f −300mm
Edge thickness te 4mm
Center thickness tc 3.7mm
Back focal length fb −302.4mm
Radius of curvature r 155.7mm
details
CLB-3050-130NIR1
30mm x 50mm 130mm
5-8 weeks
€283.23
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×50mm
Focal length f −130mm
Edge thickness te 5mm
Center thickness tc 3.3mm
Back focal length fb −132.2mm
Radius of curvature r 67.47mm
details
CLB-1010-20NIR1
10mm x 10mm 20mm
5-8 weeks
€166.06
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 10×10mm
Focal length f −20mm
Edge thickness te 3mm
Center thickness tc 1.7mm
Back focal length fb −21.1mm
Radius of curvature r 10.38mm
details
CLB-2030-150NIR1
20mm x 30mm 150mm
5-8 weeks
€210.34
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×30mm
Focal length f −150mm
Edge thickness te 4mm
Center thickness tc 3.4mm
Back focal length fb −152.2mm
Radius of curvature r 77.85mm
details
CLB-2030-300NIR1
20mm x 30mm 300mm
5-8 weeks
€210.34
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×30mm
Focal length f −300mm
Edge thickness te 4mm
Center thickness tc 3.7mm
Back focal length fb −302.4mm
Radius of curvature r 155.7mm
details
CLB-3050-250NIR1
30mm x 50mm 250mm
5-8 weeks
€283.23
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×50mm
Focal length f −250mm
Edge thickness te 5mm
Center thickness tc 4.1mm
Back focal length fb −252.7mm
Radius of curvature r 129.75mm
details
CLB-1010-40NIR1
10mm x 10mm 40mm
5-8 weeks
€159.59
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 10×10mm
Focal length f −40mm
Edge thickness te 3mm
Center thickness tc 2.4mm
Back focal length fb −41.6mm
Radius of curvature r 20.76mm
details
CLB-2040-40NIR1
20mm x 40mm 40mm
1 week
€273.99
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×40mm
Focal length f −40mm
Edge thickness te 5mm
Center thickness tc 2.4mm
Back focal length fb −41.6mm
Radius of curvature r 20.76mm
details
CLB-1020-25NIR1
10mm x 20mm 25mm
5-8 weeks
€202.95
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 10×20mm
Focal length f −25mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −26.3mm
Radius of curvature r 12.98mm
details
CLB-2040-70NIR1
20mm x 40mm 70mm
5-8 weeks
€246.31
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×40mm
Focal length f −70mm
Edge thickness te 4mm
Center thickness tc 2.6mm
Back focal length fb −71.7mm
Radius of curvature r 36.33mm
details
CLB-1515-20NIR1
15mm x 15mm 20mm
5-8 weeks
€193.73
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 15×15mm
Focal length f −20mm
Edge thickness te 5mm
Center thickness tc 1.8mm
Back focal length fb −21.2mm
Radius of curvature r 10.38mm
details
CLB-2050-130NIR1
20mm x 50mm 130mm
5-8 weeks
€256.48
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×50mm
Focal length f −130mm
Edge thickness te 4mm
Center thickness tc 3.3mm
Back focal length fb −132.1mm
Radius of curvature r 67.47mm
details
CLB-1515-40NIR1
15mm x 15mm 40mm
5-8 weeks
€200.20
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 15×15mm
Focal length f −40mm
Edge thickness te 4mm
Center thickness tc 2.6mm
Back focal length fb −41.7mm
Radius of curvature r 20.76mm
details
CLB-2050-250NIR1
20mm x 50mm 250mm
5-8 weeks
€256.48
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×50mm
Focal length f −250mm
Edge thickness te 4mm
Center thickness tc 3.6mm
Back focal length fb −252.4mm
Radius of curvature r 129.75mm
details
CLB-1525-30NIR1
15mm x 25mm 30mm
5-8 weeks
€237.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 15×25mm
Focal length f −30mm
Edge thickness te 4mm
Center thickness tc 2.1mm
Back focal length fb −31.4mm
Radius of curvature r 15.57mm
details
CLB-3030-60NIR1
30mm x 30mm 60mm
5-8 weeks
€250.01
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×30mm
Focal length f −60mm
Edge thickness te 6mm
Center thickness tc 2.1mm
Back focal length fb −61.4mm
Radius of curvature r 31.14mm
details
CLB-2020-30NIR1
20mm x 20mm 30mm
1 week
€226.95
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×20mm
Focal length f −30mm
Edge thickness te 6mm
Center thickness tc 2.4mm
Back focal length fb −31.6mm
Radius of curvature r 15.57mm
details
CLB-3030-100NIR1
30mm x 30mm 100mm
1 week
€257.40
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×30mm
Focal length f −100mm
Edge thickness te 5mm
Center thickness tc 2.8mm
Back focal length fb −101.8mm
Radius of curvature r 51.9mm
details
CLB-2020-60NIR1
20mm x 20mm 60mm
5-8 weeks
€214.04
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×20mm
Focal length f −60mm
Edge thickness te 4mm
Center thickness tc 2.4mm
Back focal length fb −61.5mm
Radius of curvature r 31.14mm
details
CLB-3030-200NIR1
30mm x 30mm 200mm
1 week
€237.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×30mm
Focal length f −200mm
Edge thickness te 5mm
Center thickness tc 3.9mm
Back focal length fb −202.6mm
Radius of curvature r 103.8mm
details
CLB-2020-100NIR1
20mm x 20mm 100mm
5-8 weeks
€200.20
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×20mm
Focal length f −100mm
Edge thickness te 4mm
Center thickness tc 3mm
Back focal length fb −102.0mm
Radius of curvature r 51.9mm
details
CLB-3040-50NIR1
30mm x 40mm 50mm
5-8 weeks
€286.90
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×40mm
Focal length f −50mm
Edge thickness te 7mm
Center thickness tc 2.2mm
Back focal length fb −51.5mm
Radius of curvature r 25.95mm
details
CLB-2020-200NIR1
20mm x 20mm 200mm
5-8 weeks
€186.34
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×20mm
Focal length f −200mm
Edge thickness te 4mm
Center thickness tc 3.5mm
Back focal length fb −202.3mm
Radius of curvature r 103.8mm
details
CLB-3040-80NIR1
30mm x 40mm 80mm
5-8 weeks
€273.99
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×40mm
Focal length f −80mm
Edge thickness te 5mm
Center thickness tc 2.2mm
Back focal length fb −81.4mm
Radius of curvature r 41.52mm
details
CLB-2030-100NIR1
20mm x 30mm 100mm
5-8 weeks
€223.26
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×30mm
Focal length f −100mm
Edge thickness te 4mm
Center thickness tc 3mm
Back focal length fb −102.0mm
Radius of curvature r 51.9mm
details
CLB-3050-150NIR1
30mm x 50mm 150mm
5-8 weeks
€283.23
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×50mm
Focal length f −150mm
Edge thickness te 5mm
Center thickness tc 3.5mm
Back focal length fb −152.3mm
Radius of curvature r 77.85mm
details
CLB-1010-25NIR1
10mm x 10mm 25mm
5-8 weeks
€166.06
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 10×10mm
Focal length f −25mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −26.3mm
Radius of curvature r 12.98mm
details
CLB-2030-200NIR1
20mm x 30mm 200mm
5-8 weeks
€210.34
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×30mm
Focal length f −200mm
Edge thickness te 4mm
Center thickness tc 3.5mm
Back focal length fb −202.3mm
Radius of curvature r 103.8mm
details
CLB-2040-25NIR1
20mm x 40mm 25mm
5-8 weeks
€286.90
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×40mm
Focal length f −25mm
Edge thickness te 7mm
Center thickness tc 2.3mm
Back focal length fb −26.5mm
Radius of curvature r 12.98mm
details
CLB-3050-300NIR1
30mm x 50mm 300mm
5-8 weeks
€283.23
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×50mm
Focal length f −300mm
Edge thickness te 5mm
Center thickness tc 4.3mm
Back focal length fb −302.8mm
Radius of curvature r 155.7mm
details
CLB-1020-15NIR1
10mm x 20mm 15mm
5-8 weeks
€196.50
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 10×20mm
Focal length f −15mm
Edge thickness te 4mm
Center thickness tc 2.2mm
Back focal length fb −16.4mm
Radius of curvature r 7.79mm
details
CLB-2040-50NIR1
20mm x 40mm 50mm
5-8 weeks
€260.15
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×40mm
Focal length f −50mm
Edge thickness te 4mm
Center thickness tc 2mm
Back focal length fb −51.3mm
Radius of curvature r 25.95mm
details
CLB-1020-30NIR1
10mm x 20mm 30mm
5-8 weeks
€210.34
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 10×20mm
Focal length f −30mm
Edge thickness te 3mm
Center thickness tc 2.2mm
Back focal length fb −31.4mm
Radius of curvature r 15.57mm
details
CLB-2040-80NIR1
20mm x 40mm 80mm
5-8 weeks
€246.31
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×40mm
Focal length f −80mm
Edge thickness te 4mm
Center thickness tc 2.8mm
Back focal length fb −81.8mm
Radius of curvature r 41.52mm
details
CLB-1515-25NIR1
15mm x 15mm 25mm
5-8 weeks
€193.73
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 15×15mm
Focal length f −25mm
Edge thickness te 5mm
Center thickness tc 2.6mm
Back focal length fb −26.7mm
Radius of curvature r 12.98mm
details
CLB-2050-150NIR1
20mm x 50mm 150mm
5-8 weeks
€256.48
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×50mm
Focal length f −150mm
Edge thickness te 4mm
Center thickness tc 3.4mm
Back focal length fb −152.2mm
Radius of curvature r 77.85mm
details
CLB-1525-20NIR1
15mm x 25mm 20mm
1 week
€223.26
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 15×25mm
Focal length f −20mm
Edge thickness te 5mm
Center thickness tc 1.8mm
Back focal length fb −21.2mm
Radius of curvature r 10.38mm
details
CLB-2050-300NIR1
20mm x 50mm 300mm
5-8 weeks
€256.48
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×50mm
Focal length f −300mm
Edge thickness te 4mm
Center thickness tc 3.7mm
Back focal length fb −302.4mm
Radius of curvature r 155.7mm
details
CLB-1525-40NIR1
15mm x 25mm 40mm
5-8 weeks
€237.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 15×25mm
Focal length f −40mm
Edge thickness te 4mm
Center thickness tc 2.6mm
Back focal length fb −41.7mm
Radius of curvature r 20.76mm
details
CLB-3030-70NIR1
30mm x 30mm 70mm
5-8 weeks
€237.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×30mm
Focal length f −70mm
Edge thickness te 5mm
Center thickness tc 1.8mm
Back focal length fb −71.2mm
Radius of curvature r 36.33mm
details
CLB-2020-40NIR1
20mm x 20mm 40mm
1 week
€226.95
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×20mm
Focal length f −40mm
Edge thickness te 5mm
Center thickness tc 2.4mm
Back focal length fb −41.6mm
Radius of curvature r 20.76mm
details
CLB-3030-130NIR1
30mm x 30mm 130mm
1 week
€237.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×30mm
Focal length f −130mm
Edge thickness te 5mm
Center thickness tc 3.3mm
Back focal length fb −132.2mm
Radius of curvature r 67.47mm
details
CLB-2020-70NIR1
20mm x 20mm 70mm
5-8 weeks
€200.20
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×20mm
Focal length f −70mm
Edge thickness te 4mm
Center thickness tc 2.6mm
Back focal length fb −71.7mm
Radius of curvature r 36.33mm
details
CLB-3030-250NIR1
30mm x 30mm 250mm
5-8 weeks
€237.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×30mm
Focal length f −250mm
Edge thickness te 5mm
Center thickness tc 4.1mm
Back focal length fb −252.7mm
Radius of curvature r 129.75mm
details
CLB-2020-130NIR1
20mm x 20mm 130mm
5-8 weeks
€186.34
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×20mm
Focal length f −130mm
Edge thickness te 4mm
Center thickness tc 3.3mm
Back focal length fb −132.1mm
Radius of curvature r 67.47mm
details
CLB-3040-60NIR1
30mm x 40mm 60mm
5-8 weeks
€286.90
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×40mm
Focal length f −60mm
Edge thickness te 6mm
Center thickness tc 2.1mm
Back focal length fb −61.4mm
Radius of curvature r 31.14mm
details
CLB-2020-250NIR1
20mm x 20mm 250mm
5-8 weeks
€186.34
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×20mm
Focal length f −250mm
Edge thickness te 4mm
Center thickness tc 3.6mm
Back focal length fb −252.4mm
Radius of curvature r 129.75mm
details
CLB-3050-100NIR1
30mm x 50mm 100mm
5-8 weeks
€303.51
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×50mm
Focal length f −100mm
Edge thickness te 5mm
Center thickness tc 2.8mm
Back focal length fb −101.8mm
Radius of curvature r 51.9mm
details
CLB-1010-15NIR1
10mm x 10mm 15mm
1 week
€166.06
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 10×10mm
Focal length f −15mm
Edge thickness te 4mm
Center thickness tc 2.2mm
Back focal length fb −16.4mm
Radius of curvature r 7.79mm
details
CLB-2030-130NIR1
20mm x 30mm 130mm
5-8 weeks
€210.34
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×30mm
Focal length f −130mm
Edge thickness te 4mm
Center thickness tc 3.3mm
Back focal length fb −132.1mm
Radius of curvature r 67.47mm
details
CLB-2030-250NIR1
20mm x 30mm 250mm
5-8 weeks
€210.34
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×30mm
Focal length f −250mm
Edge thickness te 4mm
Center thickness tc 3.6mm
Back focal length fb −252.4mm
Radius of curvature r 129.75mm
details
CLB-3050-200NIR1
30mm x 50mm 200mm
5-8 weeks
€283.23
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 30×50mm
Focal length f −200mm
Edge thickness te 5mm
Center thickness tc 3.9mm
Back focal length fb −202.6mm
Radius of curvature r 103.8mm
details
CLB-1010-30NIR1
10mm x 10mm 30mm
5-8 weeks
€159.59
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 10×10mm
Focal length f −30mm
Edge thickness te 3mm
Center thickness tc 2.2mm
Back focal length fb −31.4mm
Radius of curvature r 15.57mm
details
CLB-2040-30NIR1
20mm x 40mm 30mm
1 week
€273.99
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 20×40mm
Focal length f −30mm
Edge thickness te 6mm
Center thickness tc 2.4mm
Back focal length fb −31.6mm
Radius of curvature r 15.57mm
details
CLB-1020-20NIR1
10mm x 20mm 20mm
5-8 weeks
€202.95
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
A×B 10×20mm
Focal length f −20mm
Edge thickness te 3mm
Center thickness tc 1.7mm
Back focal length fb −21.1mm
Radius of curvature r 10.38mm

You must be logged in to ask questions
