1nm Feedback Stages

NFS-UPX

Out of stock

SKU

NFS-UPX

High resolution feedback stage with 5-phase stepping motor, built-in glass scale, and CE/UKCA marking. The built-in optical glass scale provides high positional repeatability and high resolution.

Add to Wish List

Customize product

Filters

Enabled filters :

Remove all filters

Name

Travel

Material

Load Capacity

Stage Size

Delivery

Price

Add to cart

details

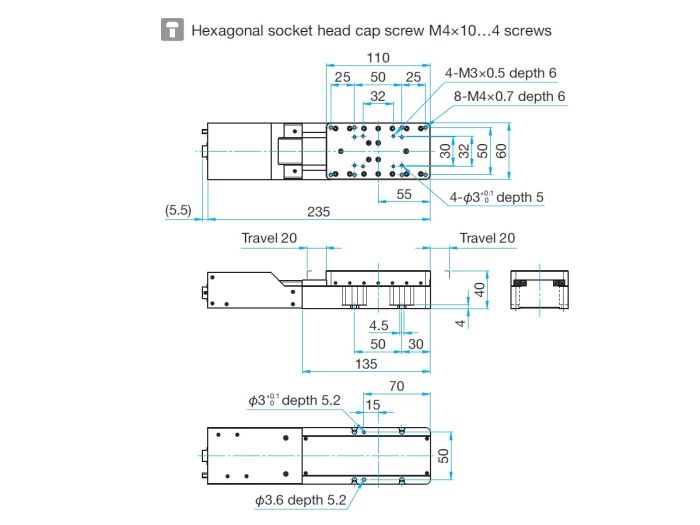

NFS60-40UPX

40mm

Aluminium

49N (5.0kg)

7-10 weeks

€7,392.90

Stage Size	110x60mm
Finish	Black anodized
Feed Screw	Ball screw diameter φ4mm, 1mm lead
Positioning Slide	Crossed roller
Resolution (Full)	1μm/pulse　 *1
Resolution (Half)	0.5μm/pulse 　*1
Positioning Accuracy	1μm *2
Positional Repeatability	0.4μm *2
Micro-range Bi-directional Repeatability	±4nm *3
Minimal Incremental Motion	3nm
MAX Speed	5mm/sec
Moment Stiffness / Pitch	0.05″/N･cm
Moment Stiffness / Yaw	0.05″/N･cm
Moment Stiffness / Roll	0.05″/N･cm
Lost Motion	0.4μm
Backlash	1μm
Parallelism	50μm
Running Parallelism	10μm
Pitch	15″
Yaw	15″
Motor / Motor Type	5-phase stepping motor 0.75A/phase（Oriental Motor Co., Ltd.）
Motor / Motor Part Number	PK523PMB-C5（□28mm）
Scale Resolution	1nm

details

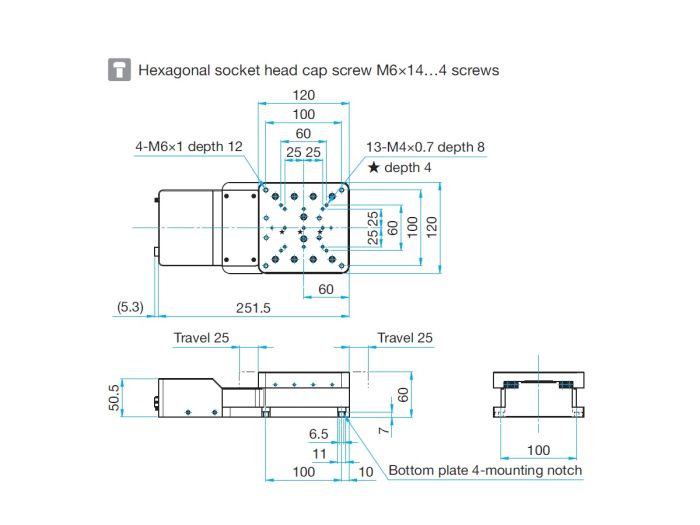

NFS120-50UPX

50mm

Aluminium

98N (10.0kg)

120×120mm

7-10 weeks

€7,885.70

Stage Size	120x120mm
Finish	Black anodized
Feed Screw	Ball screw diameter φ8mm, 1mm lead
Positioning Slide	Crossed roller
Resolution (Full)	2μm/pulse　*1
Resolution (Half)	1μm/pulse　*1
Positioning Accuracy	1μm *2
Positional Repeatability	0.4μm *2
Micro-range Bi-directional Repeatability	±3nm *3
Minimal Incremental Motion	3nm
MAX Speed	5mm/sec
Moment Stiffness / Pitch	0.05″/N･cm
Moment Stiffness / Yaw	0.05″/N･cm
Moment Stiffness / Roll	0.05″/N･cm
Lost Motion	0.4μm
Backlash	1μm
Parallelism	50μm
Running Parallelism	10μm
Pitch	15″
Yaw	15″
Motor / Motor Type	5-phase stepping motor 0.75A/phase（Oriental Motor Co., Ltd.）
Motor / Motor Part Number	PK545NBW (□42mm)
Scale Resolution	1nm

details

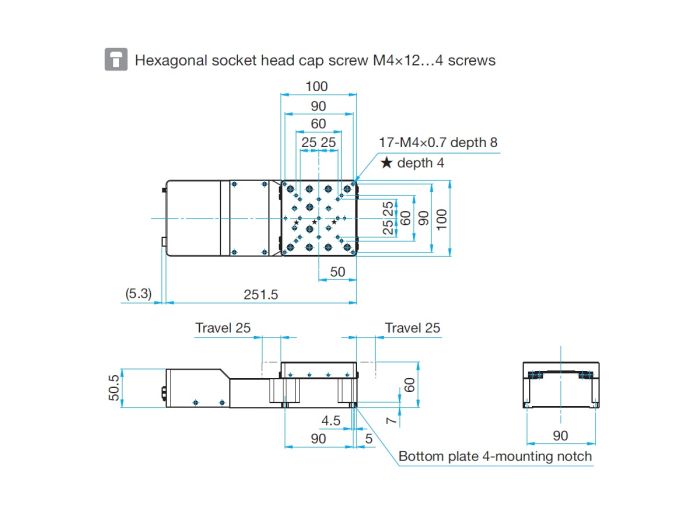

NFS100-50UPX

50mm

Aluminium

98N (10.0kg)

100×100mm

7-10 weeks

€7,885.70

Stage Size	100x100mm
Finish	Black anodized
Feed Screw	Ball screw diameter φ4mm, 1mm lead
Positioning Slide	Crossed roller
Resolution (Full)	2μm/pulse　*1
Resolution (Half)	1μm/pulse　*1
Positioning Accuracy	1μm *2
Positional Repeatability	0.4μm *2
Micro-range Bi-directional Repeatability	±3nm *3
Minimal Incremental Motion	3nm
MAX Speed	5mm/sec
Moment Stiffness / Pitch	0.05″/N･cm
Moment Stiffness / Yaw	0.05″/N･cm
Moment Stiffness / Roll	0.05″/N･cm
Lost Motion	0.4μm
Backlash	1μm
Parallelism	50μm
Running Parallelism	10μm
Pitch	15″
Yaw	15″
Motor / Motor Type	5-phase stepping motor 0.75A/phase（Oriental Motor Co., Ltd.）
Motor / Motor Part Number	PK523PMB-C5（□28mm）
Scale Resolution	1nm

details

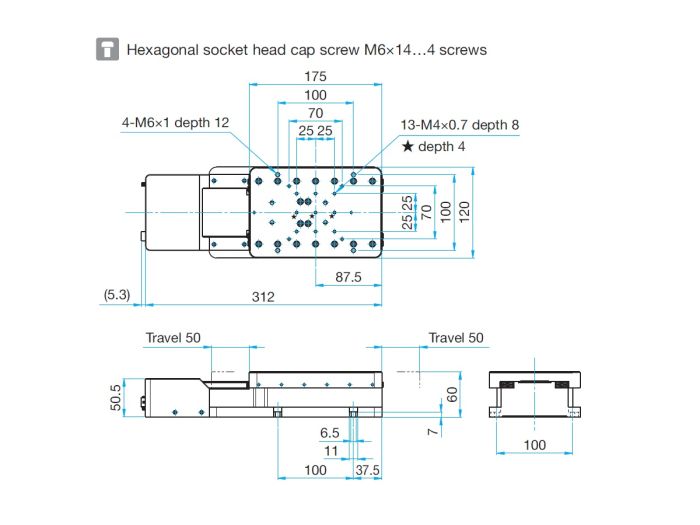

NFS120-100UPX

100mm

Aluminium

98N (10.0kg)

7-10 weeks

€8,871.40

Stage Size	175x120mm
Finish	Black anodized
Feed Screw	Ball screw diameter φ4mm, 1mm lead
Positioning Slide	Crossed roller
Resolution (Full)	2μm/pulse　*1
Resolution (Half)	1μm/pulse　*1
Positioning Accuracy	2μm *2
Positional Repeatability	0.4μm *2
Micro-range Bi-directional Repeatability	±3nm *3
Minimal Incremental Motion	3nm
MAX Speed	5mm/sec
Moment Stiffness / Pitch	0.05″/N･cm
Moment Stiffness / Yaw	0.05″/N･cm
Moment Stiffness / Roll	0.05″/N･cm
Lost Motion	0.4μm
Backlash	1μm
Parallelism	50μm
Running Parallelism	10μm
Pitch	15″
Yaw	15″
Motor / Motor Type	5-phase stepping motor 0.75A/phase（Oriental Motor Co., Ltd.）
Motor / Motor Part Number	PK545NBW (□42mm)
Scale Resolution	1nm

details

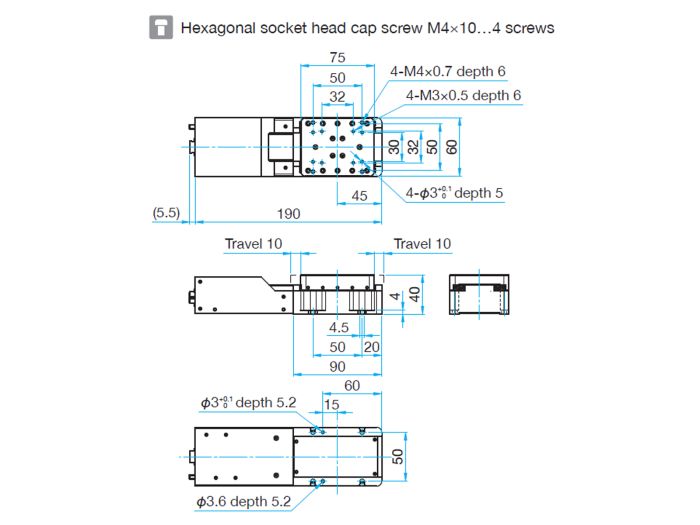

NFS60-20UPX

20mm

Aluminium

49N (5.0kg)

7-10 weeks

€6,900.00

Stage Size	75x60mm
Finish	Black anodized
Feed Screw	Ball screw diameter φ4mm, 1mm lead
Positioning Slide	Crossed roller
Resolution (Full)	1μm/pulse　*1
Resolution (Half)	0.5μm/pulse　*1
Positioning Accuracy	1μm *2
Positional Repeatability	0.4μm *2
Micro-range Bi-directional Repeatability	±4nm *3
Minimal Incremental Motion	3nm
MAX Speed	5mm/sec
Moment Stiffness / Pitch	0.5″/N･cm
Moment Stiffness / Yaw	0.5″/N･cm
Moment Stiffness / Roll	0.5″/N･cm
Lost Motion	0.4μm
Backlash	1μm
Parallelism	50μm
Running Parallelism	10μm
Pitch	15″
Yaw	15″
Motor / Motor Type	5-phase stepping motor 0.75A/phase（Oriental Motor Co., Ltd.）
Motor / Motor Part Number	PK523PMB-C5（□28mm）
Scale Resolution	1nm

details

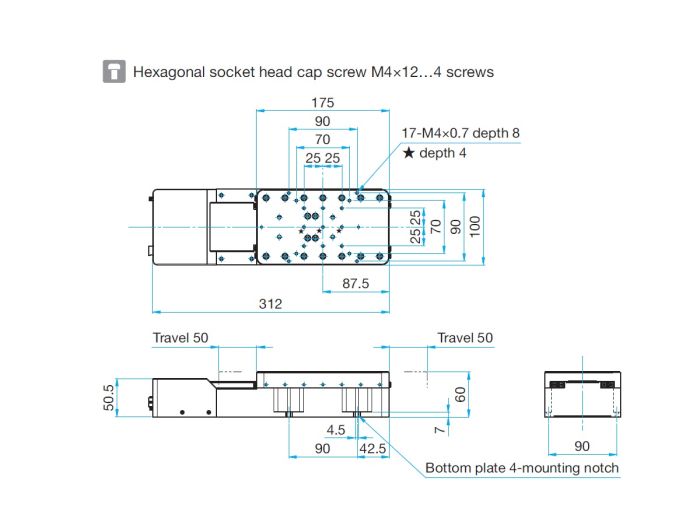

NFS100-100UPX

100mm

Aluminium

98N (10.0kg)

7-10 weeks

€8,871.40

Stage Size	175x100mm
Finish	Black anodized
Feed Screw	Ball screw diameter φ8mm, 1mm lead
Positioning Slide	Crossed roller
Resolution (Full)	2μm/pulse　*1
Resolution (Half)	1μm/pulse　*1
Positioning Accuracy	2μm *2
Positional Repeatability	0.4μm *2
Micro-range Bi-directional Repeatability	±3nm *3
Minimal Incremental Motion	3nm
MAX Speed	5mm/sec
Moment Stiffness / Pitch	0.05″/N･cm
Moment Stiffness / Yaw	0.05″/N･cm
Moment Stiffness / Roll	0.05″/N･cm
Lost Motion	0.4μm
Backlash	1μm
Parallelism	50μm
Running Parallelism	10μm
Pitch	15″
Yaw	15″
Motor / Motor Type	5-phase stepping motor 0.75A/phase（Oriental Motor Co., Ltd.）
Motor / Motor Part Number	PK545NBW (□42mm)
Scale Resolution	1nm

You must be logged in to ask questions

Ball screw drive allows longer travel than piezo stages, and a wide variety of travel and table sizes can be selected. A plugin for the "Autoconfig" function is equipped for user convenience. Controllers compatible with the Feedback Stage (NFS series) are available. The 1 nm Feedback Stage is available in 6 different table sizes.
