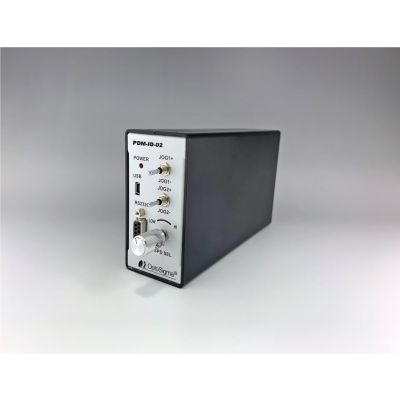

Concurrent-Drive, Two-Channel Controller for PDM Series Piezomotor Actuators

PDM-ID-02

Skip to the beginning of the images gallery

The PDM-ID-02 can drive both channels simultaneously, unlike most other piezomotor controllers. This two-axis controller for PDM-series piezomotor actuators and assemblies can be operated by computer control using the RS232C or USB interface, by the jog switches on the front panel, or by TTL I/O.

Details

◦The jog stick is used for easy manual operation. The speed selecting knob switches jog and step movements for coarse and fine adjustment.
◦ Can be operated from a PC via RS232C/USB interface.

More Information

More Information
Name	Concurrent-Drive, Two-Channel Controller for PDM Series Piezomotor Actuators
Weight	0.6000kgs
Guide	Sample programs and a manual are available for download from our website.
Attention	▶The power supply specification of the PDM-ID-02 is DC+24V 2A. The power supply should be prepared by the customer or purchase AC-ADP-2427. Do not connect this controller to any product other than piezo drive motors (PDM-**ACT).
Number of Control Axes	2 axes
Mounting Thread	M3
Number Channels	2 axes (Can operate simultaneously)
Interface	RS232C, USB (virtual COM) recognized as virtual serial port from external PC
Maximum travel speed	1500pps
Manual Speed Setting	Four Configurable Settings. Default(1p/step, 10p/step, 100p/step, Continuous)
Manual Jog Operation	Toggle switches
Power Voltage	DC24V 2.0A
Operating temperature	5 to 40℃
Storage Temperature	−20 to 60°C
Ambient Humidity	20 to 80% RH (without condensation)
Dimension Ø x L (Except projection)	50x152.5x100mm
Weight	0.6kg
Required Power Supply P/N	AC-ADP-2427

In stock

SKU

PDM-ID-02

₹69,704.80
