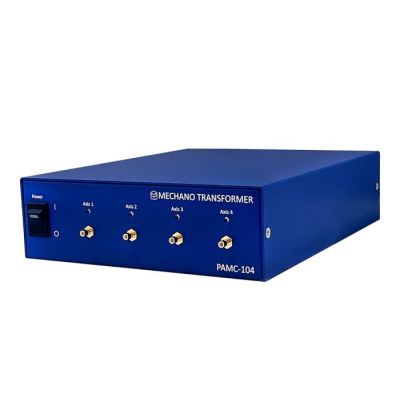

Four-Channel Piezomotor Drive Controller

PAMC-104

Skip to the beginning of the images gallery

External control via RS232C interface or manual operation via dedicated joystick controller (PAM-RC100). 4-axis controller dedicated to piezo drive motors (PDM-**ACT).

Details

RS232C/USB cable for PC connection is included.
Control software is included. Command control is possible.
Manual operation is possible with the joystick controller (PAM-RC100) sold separately.
AC adapter (AC-ADP-2427) is sold separately.

More Information

More Information
Name	Four-Channel Piezomotor Drive Controller
Weight	0.6000kgs
Attention	The power supply specification of PAMC-104 is DC+24V0.5A. AC adapter (P/N AC-ADP-2427) must be purchased or provided by the customer. Do not connect any products other than piezo drive motors (PDM-**ACT) to this controller.
Number of Control Axes	4 axes
Operating Temperature	5 - 40℃
Power Voltage	DC24V0.5A
Ambient Humidity	20 - 80％(without condensation
Storage Temperature	-20 - 60℃
Max. Drive Frequency	1500Hz
External Dimensions (Except projection)	200×162×50mm
Interface	RS232C
Number of Adjustable Axes	4
Manual Operation	Joystick Controller PAM-RC100 (sold separately)
Weight	0.6kg
Included Accessories	CD-ROM (control software) Communication cable RS⇔USB conversion cable

In stock

SKU

PAMC-104

₹128,233.60

External control via RS232C interface or manual operation via dedicated joystick controller (PAM-RC100). 4-axis controller dedicated to piezo drive motors (PDM-**ACT).
