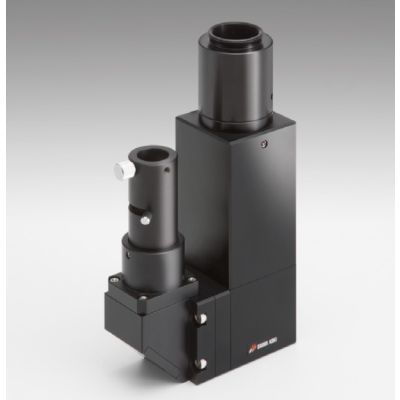

Visible-Light Microscope Body with Coaxial Illumination
OUCI-2
This compact microscope body is a customizable high performance imaging system for use in a wide range of applications from scientific research to industrial production equipment.
◦Accepts a wide variety of infinity corrected objectives.
◦Can be combined with a wide variety of optional components to accomadate many applications.
◦Can be combined with a wide variety of optional components to accomadate many applications.
Name | Visible-Light Microscope Body with Coaxial Illumination |
---|---|
Weight | 0.6500kgs |
Guide | ◦Support Infinity-corrected objective lenses. ◦Support Olympus-made objective lenses at various magnifications as standard. ◦The coaxial epi-illumination of the light guide enables the observation of bright fields. ◦The contrast of the illuminated light can be adjusted with an aperture stop. |
Attention | The OUCI will not work with Finite Conjugate objectives |
Image Label | Observation unit with coaxial illumination |
Wavelength Range | 460 - 650nm |
Mounting Thread | M4 |
Illumination Optics | Coaxial Epi-Illumination |
Imaging lens focal length | 200mm |
Camera mount | C mount (less than 2/3) |
Mounting screw for Objective lens | Φ26×0.706, Φ20.32×0.706 |
Design Wavelenght Range | Visible |
Compatible Objective Lens Type | Infinity Corrected Objective Lens |
In stock
SKU
OUCI-2
€1,336.50
This compact microscope body is a customizable high performance imaging system for use in a wide range of applications from scientific research to industrial production equipment.
