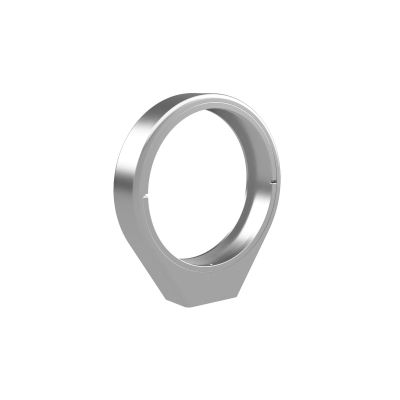

Vacuum Lens Holders for 50.8mm Diameter Lens

VLHG-50.8

Skip to the beginning of the images gallery

These are low outgassing lens holders which are ideal for using in the high vacuum conditions.

◦ It also can be used in a UV optical system or in a clean room.
◦ To minimize the outgassing, venting hole and grooving are provided onto screw holes and inset sections.
◦ Specially designed polyether ether ketone resin (PEEK resin) retaining ring is used for this holder.

More Information

More Information
Name	Vacuum Lens Holders for 50.8mm Diameter Lens
Weight	0.0650kgs
Guide	To maintain its high cleanness, special vacuum packing for delivery is provided for each component. We also provide vacuum pedestal bases （VPST） and posts (VRO). WEB Reference Catalog Code/W6108、WEB Reference Catalog Code/W6107
Attention	Please make sure that open the package in a clean environment and do not touch it with your bare hands.
Image Label	Vacuum Lens Holders for 50.8mm Diameter Lens
Compatible Optics Diameter	φ50.8mm
Compatible Optics Thickness	2～9mm
Clear Aperture	φ47mm
Screw Diameter and Pitch	M51.65 P0.75
Optical Axis Height	35mm

In stock

SKU

VLHG-50.8

€322.90

These are low outgassing lens holders which are ideal for using in the high vacuum conditions.

Vacuum Lens Holders for 50.8mm Diameter Lens
