150mm Stainless Steel Post Holder 1/2-in posts, Pedestal Base
PHX-12.7-150-P

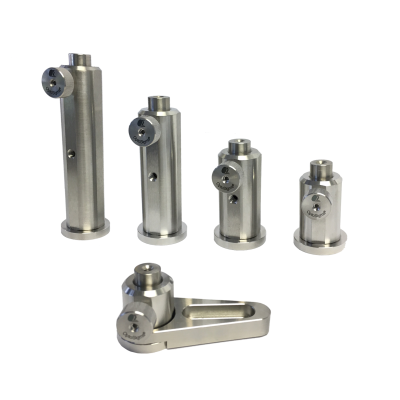

The PHX series 1/2-in. post holders are made from stainless steel and mount with pedestal-style bases. The body, base, and knob are all made from passivated 300-series stainless steel, providing additional stiffness and lower thermal expansion compared to aluminum. Additionally, the stainless steel makes them suitable for applications in UV wavelengths.
The pedestal base has industry-standard dimensions making it compatible with all standard clamping forks. The inner diameter is sized for standard 12.7-mm (1/2-in.) posts and provides stable, 3-point clamping. The PHX post holders also feature an additional threaded clamp-knob hole for better adjustment accessibility when large platforms are post mounted.
-
| Name | 150mm Stainless Steel Post Holder 1/2-in posts, Pedestal Base |
|---|---|
| Weight | 1.0000kgs |
| Guide | - |
| Attention | - |
| Diameter | 12.7mm |
| Length | 150mm |
| Compatible Post Diameter | 12.7mm (0.5") |
| Base Type | Pedestal |
| Standard Height | 150mm |
| Total Height | 155mm |
| Post Clamp Thread | M5x0.8 (10-32) |
| Material | Passivated Stainless Steel |
| Maximum Post Height-Adjustment Range | 144mm |
In stock
SKU
PHX-12.7-150-P
€64.40
Customize product
The PHX series 1/2-in. post holders are made from stainless steel and mount with pedestal-style bases. The body, base, and knob are all made from passivated 300-series stainless steel, providing additional stiffness and lower thermal expansion compared to aluminum. Additionally, the stainless steel makes them suitable for applications in UV wavelengths.
The pedestal base has industry-standard dimensions making it compatible with all standard clamping forks. The inner diameter is sized for standard 12.7-mm (1/2-in.) posts and provides stable, 3-point clamping. The PHX post holders also feature an additional threaded clamp-knob hole for better adjustment accessibility when large platforms are post mounted.
