In stock
SKU
REP
Kinematic base composed of a top and bottom plate. The top plate secures holders or other equipment while the bottom plate is fixed to an optical breadboard.
Customize product
Filters
Enabled filters :
Remove all filters
| Name | Delivery | Price | Add to cart | |||
|---|---|---|---|---|---|---|
|
details
REP-100
|
4-6 weeks
|
€85.20
|
|
|
||
|
details
REP-40
|
4-6 weeks
|
€47.60
|
|
|
||
|
details
REP-65PEE
|
4-6 weeks
|
€30.10
|
|
|
||
|
details
REP-100P
|
4-6 weeks
|
€45.10
|
|
|
||
|
details
REP-40PUU
|
4-6 weeks
|
€25.20
|
|
|
||
|
details
REP-65UU
|
4-6 weeks
|
€65.20
|
|
|
||
|
details

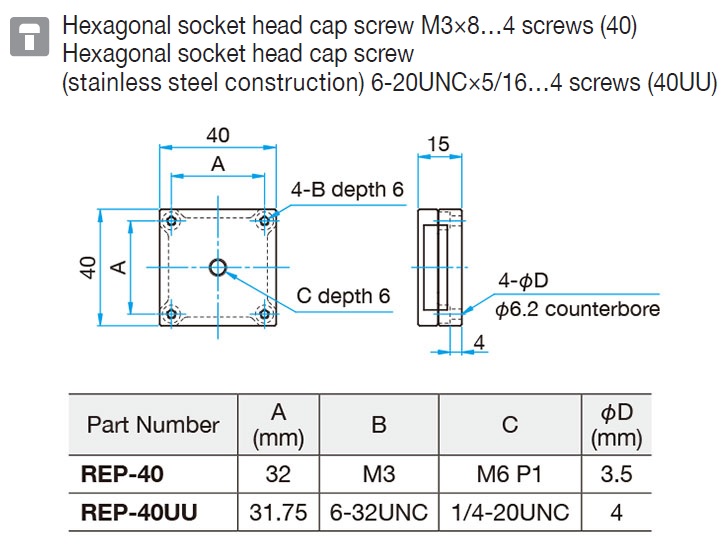

REP-40UU
|
4-6 weeks
|
€47.60
|
|
|
||
|
details
REP-65PUU
|
4-6 weeks
|
€30.10
|
|
|
||
|
details
REP-25P
|
4-6 weeks
|
€22.60
|
|
|
||
|
details
REP-60P
|
4-6 weeks
|
€32.70
|
|
|
||
|
details
REP-70
|
4-6 weeks
|
€80.00
|
|
|
||
|
details
REP-25
|
4-6 weeks
|
€45.10
|
|
|
||
|
details

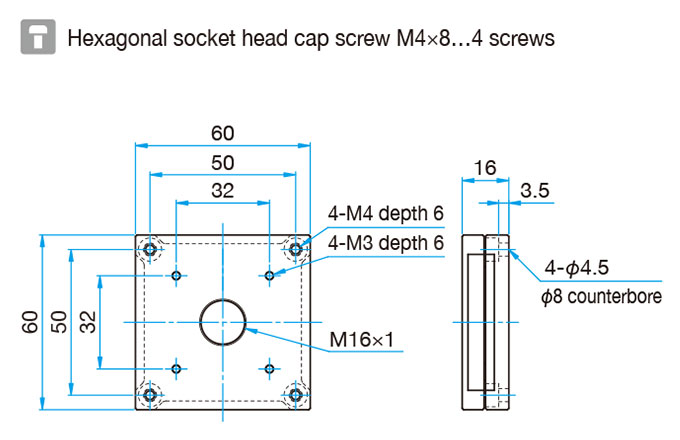

REP-60
|
4-6 weeks
|
€60.20
|
|
|
||
|
details
REP-70P
|
4-6 weeks
|
€40.10
|
|
|
||
|
details

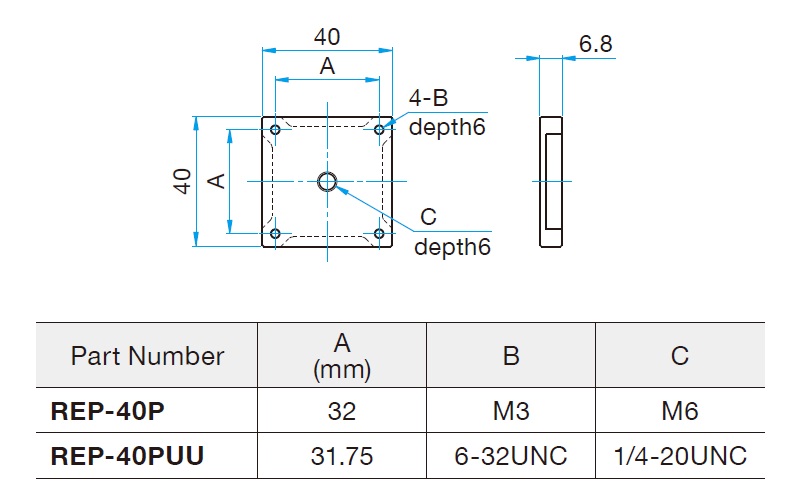

REP-40P
|
4-6 weeks
|
€25.20
|
|
|
||
|
details

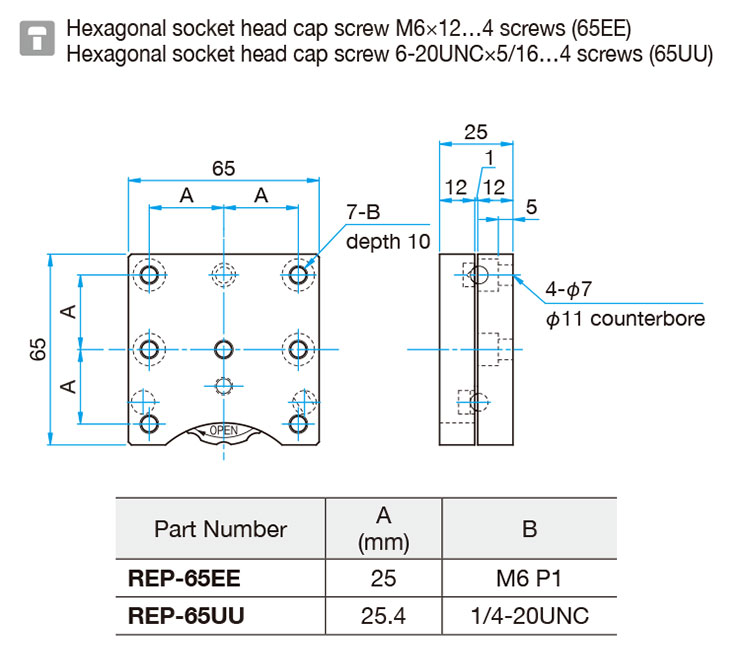

REP-65EE
|
4-6 weeks
|
€65.20
|
|
|
You must be logged in to ask questions
◦Accurate positional repeatability is achieved by matching the holes on the upper plate to the three steel balls embedded in the bottom plate.
◦The top plate can be secured with a strong magnet or a knurled set screw depending on the version.
◦The top plate of the REP magnetic type series (25×25 mm, 40×40 mm, 60×60mm) can be quickly removed our swapped out. It has a repeatability value of less than 100μrad.
◦Always secure the bottom plate with screws.
◦The top plate can be secured with a strong magnet or a knurled set screw depending on the version.
◦The top plate of the REP magnetic type series (25×25 mm, 40×40 mm, 60×60mm) can be quickly removed our swapped out. It has a repeatability value of less than 100μrad.
◦Always secure the bottom plate with screws.
