CageCore Multi-Purpose Holder

C30-CU-LCH

CageCore Multi-Purpose Holder
In stock
SKU
C30-CU-LCH
Multi-purpose holder that can be shared by 30mmCage system and core unit. Since the fixing screw is in 4 directions, it can be used as a holder of dia. 15mm or less or a simple cross motion holder.
custom product
Customize product
Filters
Enabled filters :
Remove all filters

Attention ▶If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.

Name Delivery Price Add to cart
i
CageCore Multi-Purpose Holder

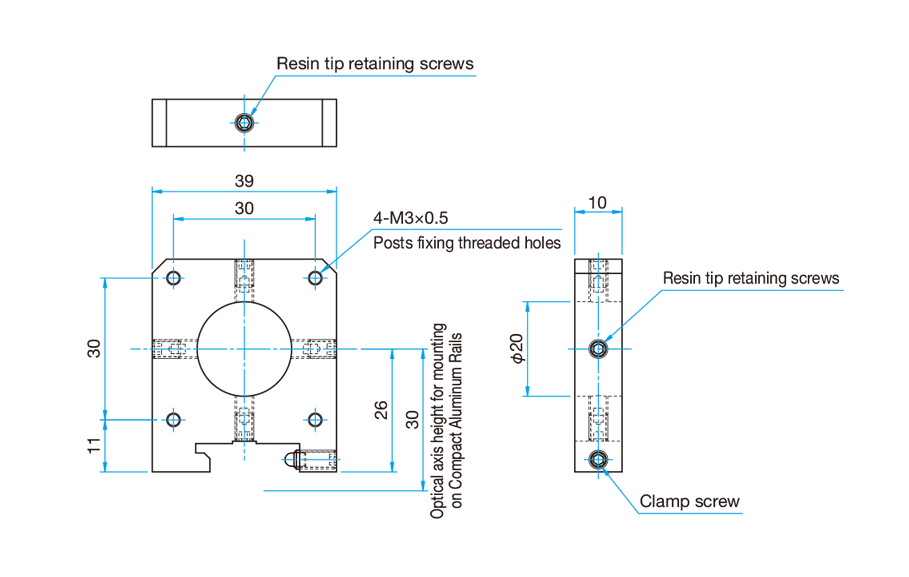

C30-CU-LCH-20
3-5 days
€134.10
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30x30mm)
Compatible Optics Diameter φ20mm
i
CageCore Multi-Purpose Holder

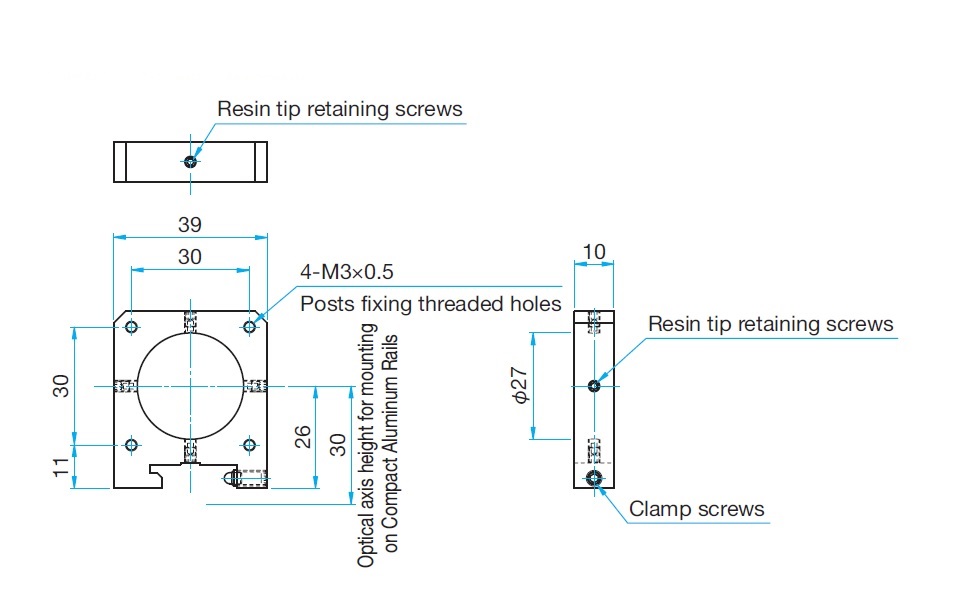

C30-CU-LCH-27
3-5 days
€134.10
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30x30mm)
Compatible Optics Diameter φ25 - φ25.4mm
i
CageCore Multi-Purpose Holder
C30-CU-LCH-15
3-5 days
€134.10
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30x30mm)
Compatible Optics Diameter φ15mm
