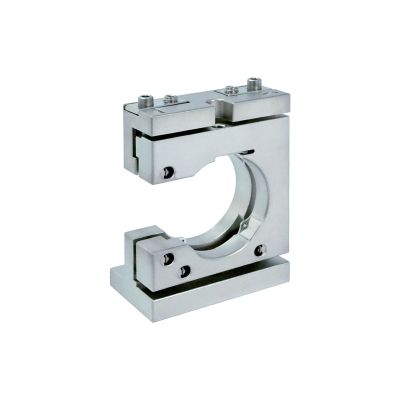

25.4-mm, Non-Magnetic Vacuum-Compatible Vertical Control Mirror Mount, front-loading
VMHV-25.4L-F-NM
These products offer both non-magnetic and vacuum-compatible performance.
This kinematic mirror mount is designed for use in environments where magnetic interference must be avoided. It features non-magnetic materials and a low-outgassing specification, making it suitable for use in vacuum conditions. Ideal for experimental systems sensitive to magnetism or for use inside vacuum chambers.
- NM Series: Products made with ultra-low magnetic stainless steel (SUS316L), ceramic balls, and titanium components. These materials have undergone our proprietary demagnetization process.
- Designed for vacuum compatibility, including material selection, cleaning, and packaging, to ensure suitability for vacuum environments.
- Sliding components use BARRIERA SUPER IS/V grease, which offers low outgassing and excellent vacuum compatibility.
- No adhesives are used in these products.
- MHV-L-F allows the mirror to be inserted from the front of the frame, whereas MHV-L-R enables insertion from the rear side of the mirror mount.
- Both types include a hole for mirror bonding, an anti-rotation structure for installation, and positioning pin holes.
| Name | 25.4-mm, Non-Magnetic Vacuum-Compatible Vertical Control Mirror Mount, front-loading |
|---|---|
| Weight | 0.1600kgs |
| Guide |
|
| Attention |
|
| Optic Loading Side | Front Loading |
| Number of Control Axes | 2 Axes |
| Optic Diameter | φ25.4mm |
| Primary material | stainless ( SUS316L ) |
| Finish | None |
| Height optical axis | 25.4 mm |
| Compatible Optics Diameter | φ25.4 mm, φ25 mm |
| Compatible Optics Thickness | 3～7 mm |
| Clear aperture | φ23 mm |
| Number of Adjustment Axes | 2 |
| Adjustment Screw | M4×0.25 mm |
| Adjustment Range ( Tilt ) | ±1.5° |
| Adjustment Range ( Rotation ) | ±1.5° |
| Resolution ( Tilt ) | About 0.37°/rotation |
| Resolution ( Rotation ) | About 0.38°/rotation |
| Magnetic Field (Reference) | 0.1 mG |
Out of stock
SKU
VMHV-25.4L-F-NM
€1,225.71
