Gimballed Mirror Holder for 80mm Optic with Screw Adjust and Rod

MHA-80S

Mirrors can rotate 360 degrees in the pitch direction. Ideal for applications where the incident light has multiple angles of incidence.

More Information
Name	Gimballed Mirror Holder for 80mm Optic with Screw Adjust and Rod
Weight	1.6000kgs
Guide	The RO-20-60 post (diameter φ20mm, length 60mm) is included but it can be replaced with other sizes. Special tools are required to remove the post. Different sized post can be specified at the time of purchase. Kinematic mirror holders, MHG-NL, should be used for low optical axes applications. WEB Reference Catalog Code/W4001
Attention	Beam splitters mounted at 45 degrees will have the beam blocked by the aluminum frame.The BHAN gimbal beamsplitter holders are recommended and have a larger transmitted clear aperture. WEB Reference Catalog Code/W4011 Use the coarse/fine switching clamp to lock down the mount after the desired adjustment. The post should be well secured before adjusting the mount.

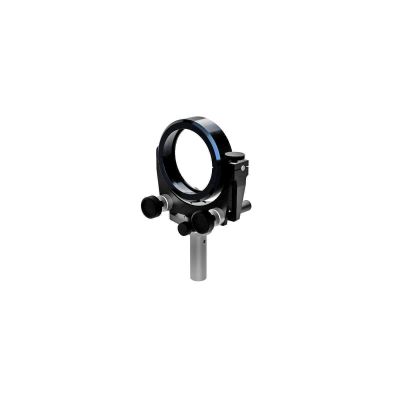

Image Label	Gimballed Mirror Holder for 80mm Optic with Screw Adjust and Rod
Diameter	80mm
Compatible Optics Diameter	φ80mm
Compatible Optics Thickness	4 - 15mm
Reflected Beam Clear Aperture (45° incidence)	φ50.9mm
Fine-Adjustment Range /Tilt	±3.5°
Fine-Adjustment Range /Rotation	±5°
Fine Adjustment Resolution /Tilt	about 0.49°/rotation
Fine Adjustment Resolution /Rotation	about 0.72°/rotation
Ultra Fine Adjustment Resolution /Tilt	-
Ultra Fine Adjustment Resolution /Rotation	-
Ultra Fine Adjuster Indicator Conversion /Tilt	-
Ultra Fine Adjuster Indicator Conversion /Rotation	-

In stock

SKU

MHA-80S

€377.10

Mirrors can rotate 360 degrees in the pitch direction. Ideal for applications where the incident light has multiple angles of incidence.
