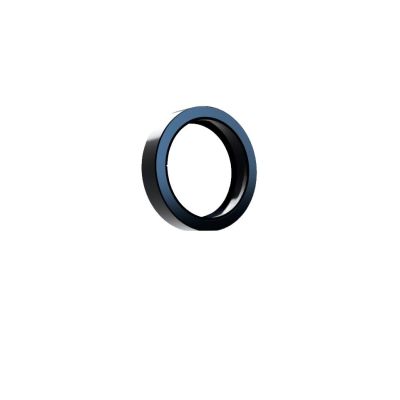

Fixed Lens Holder with 8-32UNC Threads for 100mm Diameter Optic

LHF-100-UU

Skip to the beginning of the images gallery

It can firmly fix from a thin single lens to a thick achromatic lens. Since the outer diameter of the holder is large, it has an effect on blocking stray light.

Details

More Information

More Information
Name	Fixed Lens Holder with 8-32UNC Threads for 100mm Diameter Optic
Weight	0.3900kgs
Guide	Post length can be changed by specifying the post length when you place an order. Replacement of the post is free of charge, but we may charge the difference in price depending on the length. Contact our Sales Division for more information. Thin frame lens holders (LHF-S). WEB Reference Catalog Code/W4515 Lens holder with rotation center adjustment (LHCM) is also available. WEB Reference Catalog Code/W4512-2
Attention	-
Image Label	Fixed Lens Holder with 8-32UNC Threads for 100mm Diameter Optic
Diameter	100mm
Mounting Thread	8-32UNC
Compatible Optics Diameter φA	φ100mm
Compatible Optics Thickness	4 -18mm
Clear Aperture φB	φ93mm
C	M101.1 P1
Optical Axis Height D	60mm
E	11mm
φG	φ122mm
F	26mm

In stock

SKU

LHF-100-UU

€65.80

It can firmly fix from a thin single lens to a thick achromatic lens. Since the outer diameter of the holder is large, it has an effect on blocking stray light.
