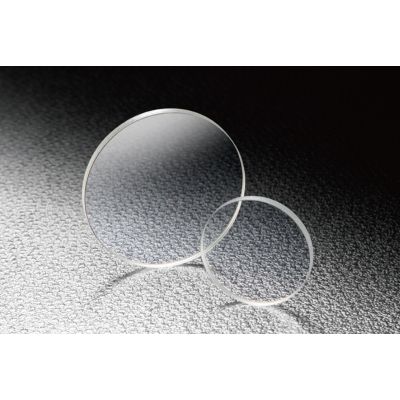

Mica Waveplate 10mm Diameter λ/2
WPM-10-2P
Mica waveplates are zero-order (first-order) retardation plates (phase plates) which are designed at 550nm wavelength and effective from 400 − 700nm. A mica sheet is sandwiched between optical glass discs for protection and ease of use.
◦These products utilize birefringence of mica and give phase difference of λ/4 (π/2, 90°) or λ/2 (π, 180°) to the input beams. λ/4 plates convert linearly polarization to circularly and circularly polarization to linearly. λ/2 plates convert the direction of polarization in 90 degrees.
◦Usually linearly polarized beams are input to the waveplates in a leaning of 45 degrees against its optical axis.
◦Usually linearly polarized beams are input to the waveplates in a leaning of 45 degrees against its optical axis.
| Name | Mica Waveplate 10mm Diameter λ/2 |
|---|---|
| Weight | 0.0050kgs |
| Standard Coatings Available | No |
| Guide |
|
| Remark | - |
| Attention |
|
| Diameter φD | 10mm |
| Image Label | Mica Waveplate 10mm Diameter λ/2 |
| Material | Sheet of Mica , Glass plates (2 pieces) |
| Wavelength Range | 580nm |
| Transmitted wavefront distortion | 2λ (λ＝550nm) |
| Incident angle | 0° |
| Theoretical retardation |
1/4waveplate ; 145nm 1/2waveplate 290nm |
| type | λ/2 |
| Diameter φD | φ10mm |
| Thickness t | 2.5mm |
In stock
SKU
WPM-10-2P
€310.40
Customize product
Mica waveplates are zero-order (first-order) retardation plates (phase plates) which are designed at 550nm wavelength and effective from 400 − 700nm. A mica sheet is sandwiched between optical glass discs for protection and ease of use.
