Long Working Distance Objective Lens 20mm Focal Length 10x Working Distance 15mm

PAL-10-HR

main product photo

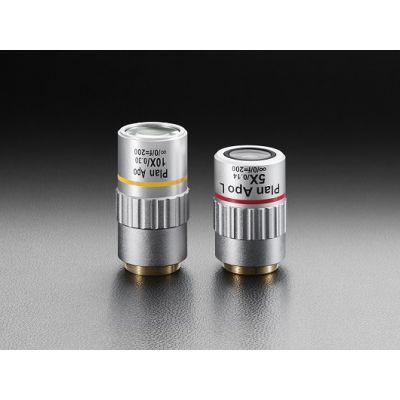

The long working distance objective lens infinity correction function and par focal length 95mm can be used for a laser system and coaxial observation. The objective will allow user to focus a visible laser or microscopic observation of objects from a distance.
◦Chromatic aberration is corrected in the visible range (400 − 700nm).
◦PAL/PAL-L has a long working distance and a corrected field curvature. Its natural observation image is obtained to the periphery of the visual field.
More Information
Name Long Working Distance Objective Lens 20mm Focal Length 10x Working Distance 15mm
Weight 0.4300kgs
Standard Coatings Available No
Guide
  • Available fixed objective lens holder (LHO-26).
  • WEB Reference Catalog Code/W4024
  • When the objective lens is fixed to a 2 axis holder, please consult our Sales Division.
  • For laser processing, we offer a dichroic block (DIMC WEB Reference Catalog Code/W2041) and for laser unit with coaxial illumination and observation (OUCI-2).
Attention
  • When an objective lens is used in laser processing, use the diameter of the incident beam to extend to a size of half the pupil diameter (1/e2). A small light spot cannot be achieved when the incident beam is too narrow. Please note if there is a laser energy density increase, there will be a high possibility of damage to the objective lens.
  • The surface of an objective lens can be contaminated by debris during processing. To avoid this, please have sufficient working distance (WD) and insert a thin protective glass on the objective.
  • Magnification is the value when using the imaging lens f=200mm. When used in a microscope lens barrel from other manufacturers there may be different magnifications. The actual magnification should be calculated from the ratio of the focal length of the objective lens and the focal length of the imaging lens to verify the focal length of the imaging lens barrel to be used.
Magnification 10×
Numerical Aperture 0.45
Working Distance WD 15mm
Focal length f 20mm
Resolution 0.6μm
Focal depth ±1.4μm
Pupil diameter φ18mm
Real field of View (Eyepiece φ24mm) φ2.4mm
Real field of View (Imaging device 1/2-inch) 0.48×0.64mm
Weight 0.43kg
In stock
SKU
PAL-10-HR
$5,774.00

Delivery in : 6-12 weeks

custom product
Customize product
Add to Wish List
The long working distance objective lens infinity correction function and par focal length 95mm can be used for a laser system and coaxial observation. The objective will allow user to focus a visible laser or microscopic observation of objects from a distance.
