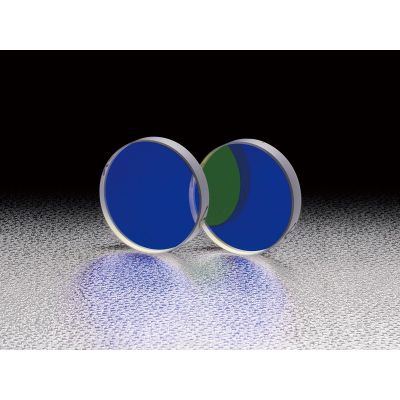

0-45° Wide Incidence Dielectric Mirror
TFVMQ-30C05-3000
You can use the 0-45° Wide Angle Dielectric Mirrors for an optical system for reciprocating the light between two mirrors or Michelson interferometer, if you want to use a mirror at an incident angle of 45 ° or less. When used at 45 degree and 0 degree incidence angle, one mirror can be shared to obtain high reflectivity.
- Very high reflectivity can be obtained between 0 degree to 45 degree angle of incidence.
- If used at a fixed angle of incidence, it can also be used as a broadband mirror.
- Since there is no absorption in the coating there will be very little change in the performance over time and the mirror is durable even with continuous laser irradiation.
| Name | 0-45° Wide Incidence Dielectric Mirror |
|---|---|
| Weight | 0.2000kgs |
| Standard Coatings Available | No |
| Guide |
|
| Attention |
|
| Diameter | φ30mm |
| Diameter φD | 30mm |
| Material | Synthetic fused silica |
| Rear Surface | Polished |
| Parallelism | <3' |
| Surface Flatness | λ/10 |
| Coating | Dielectric multi-layer coating |
| Incident angle | 0°～45° |
| Reflectance | ＞99.4% |
| Clear aperture | 80% of the diameter |
| Rear surface | Polished |
| Diameter φD | φ30 mm |
| Thickness t | 5 mm |
| Wavelength Range | 3000 nm |
| Surface Quality (Scratch-Dig) | 20 - 10 |
Out of stock
SKU
TFVMQ-30C05-3000
€707.10
Customize product
You can use the 0-45° Wide Angle Dielectric Mirrors for an optical system for reciprocating the light between two mirrors or Michelson interferometer, if you want to use a mirror at an incident angle of 45 ° or less. When used at 45 degree and 0 degree incidence angle, one mirror can be shared to obtain high reflectivity.
