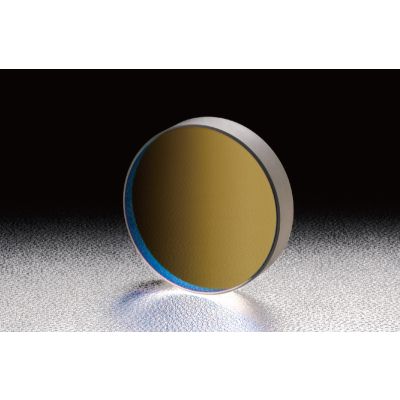

Negative Dispersion Mirror for Femtosecond Laser (Plano) 30.0mm Diameter

GFM-30C05-800

Skip to the beginning of the images gallery

This mirror has a negative dispersion and can be used for pulse compression in a femtosecond laser system.

◦These mirrors are more compact and exhibit a smaller optical loss than the conventional prisms used for pulse compression.
◦Center wavelength is for Ti: Sapphire at 800nm.
◦Plano and concave substrates designed for cavities are available.

More Information

More Information
Name	Negative Dispersion Mirror for Femtosecond Laser (Plano) 30.0mm Diameter
Weight	0.0090kgs
Standard Coatings Available	No
Guide	Fabrication of negative dispersion mirror is also available. We can also provide high power negative dispersion mirror. Also available are our surface flatness guarantee (HTFM) mirrors with accuracy guarantee after surface coating. WEB Reference Catalog Code/W3002 Please refer to here for "Wavelength Characteristic Data (Reference Data, Transmittance: T[%]) " for each wavelength.
Remark	-
Attention	The angle of incident for this series is 0 to 20 degrees and the laser dispersion may not be corrected for other angles. Please contact our Sales Division for further details.
Design wavelength	700 - 900nm
Diameter φD	30mm
Reflectance	＞99.8%
Material	BK7
Coating	Dielectric multi-layer coating
Incident angle	0° - 20°
Surface flatness	λ/10
Parallelism	＜5″(only flat mirror)
Surface Quality (Scratch-Dig)	10−5
Clear aperture	80% of the diameter
Wavelength Range	700 - 900nm
Thickness t	5mm
Radius of curvature r	∞
Laser Damage Threshold	0.5J/cm²
	(Laser Pulse width: 50fs, wavelength: 800nm)

In stock

SKU

GFM-30C05-800

$1,082.00

This mirror has a negative dispersion and can be used for pulse compression in a femtosecond laser system.
