Low Dispersion Mirror for High Power Femtosecond Laser / 1/2'' / 515nm

FLMHP-12.7C05-515

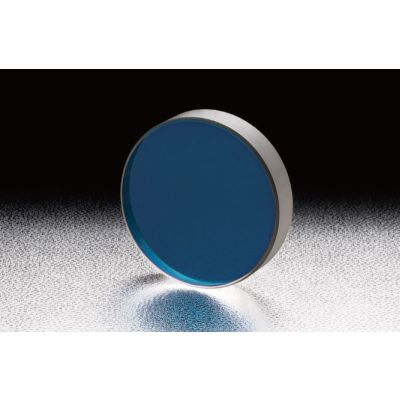

main product photo
The OptoSigma FLMHP-12.7C05-515 is a low dispersion mirror designed for high-power femtosecond lasers, specifically for a wavelength of 515 nm. It is made from UVFS (UV Fused Silica) and features a dielectric multi-layer coating. This mirror has a diameter of 12.7 mm and a thickness of 5 mm, making it suitable for applications that require precision and durability.
  • We have designed a special thin film coating that optimizes wavelength dispersion, range, and the power of lasers.
  • It has the effect of suppressing the spread of the pulse width produced by a plurality of reflecting mirrors.
  • There are three types available, FLM1 standard, FLM2 wide wavelength band, and FLMHP for high power femtosecond laser*.
  • These mirrors are designed and produced for usage within the microscopy with femtosecond laser and optical systems with femtosecond time-resolved spectroscopy.
More Information
Name Low Dispersion Mirror for High Power Femtosecond Laser / 1/2'' / 515nm
Weight 0.1000kgs
Standard Coatings Available No
Guide
  • These low dispersion wavelength mirrors are available in physical dimensions other than those found in the catalog, please contact our Sales Division for Custom products.
  • We can also provide high power negative dispersion mirror.
  • Also available are our surface flatness guarantee (HTFM) mirrors with accuracy guarantee after surface coating.
Attention
  • When used in angles other than 45 degrees (AOI), we would not be able to guarantee the wavelength dispersion.
  • For the dielectric multi-layer film, the reflection rate wavelength characteristics vary depending on the polarization state of the incident beam. The reflection rate of P polarization is lower than that of S polarization and the reflection band is narrow.
  • The reflectance specification are represented by the average of the reflectance of P polarized light and S polarized light.
Design wavelength 515nm
Diameter 12.7mm
Diameter φD 12.7mm
Incident Angle 45°
Material Synthetic fused silica
Rear Surface Polished
Parallelism <3'
Surface Flatness λ/10
Coating Dielectric multi-layer coating
Surface Quality (Scratch-Dig) 10 - 5
Clear aperture 80% of the diameter
Wavelength Range (S polarization) 1000 - 1060 nm
Wavelength Range (P polarization) 1000 - 1060 nm
Thickness t 5 mm
Reflectance ＞99.9%
Laser Damage Threshold 0.15 J/cm2( Laser pulse width: 200 fs, wavelength: 515 nm )
Out of stock
SKU
FLMHP-12.7C05-515
€1,202.10
custom product
Customize product
Add to Wish List
The OptoSigma FLMHP-12.7C05-515 is a low dispersion mirror designed for high-power femtosecond lasers, specifically for a wavelength of 515 nm. It is made from UVFS (UV Fused Silica) and features a dielectric multi-layer coating. This mirror has a diameter of 12.7 mm and a thickness of 5 mm, making it suitable for applications that require precision and durability.
