Plano Convex Lens 1.5mm Diameter 1.0mm Focal Length
SLM-1.5-01P

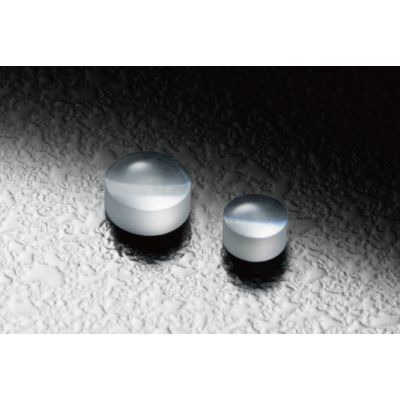

Micro lenses are spherical plano convex/biconvex lenses with diameters smaller than 4mm. These small lenses are designed for use in equipment and instruments that demand lighter and smaller footprint optics.
◦Spherical plano convex lenses are useful when parallel beams are converged or lights from sources are converted to parallel beams, i.e., at infinite conjugate ratios.
◦Spherical biconvex lenses are useful when lights from sources are converged or images are relayed to other optical systems, i.e., at unit conjugate ratios.
◦Since these lenses are designed at the wavelength 587.6nm (yellow helium line [d]), the focal lengths of them vary at other wavelengths.
◦Spherical biconvex lenses are useful when lights from sources are converged or images are relayed to other optical systems, i.e., at unit conjugate ratios.
◦Since these lenses are designed at the wavelength 587.6nm (yellow helium line [d]), the focal lengths of them vary at other wavelengths.
| Name | Plano Convex Lens 1.5mm Diameter 1.0mm Focal Length |
|---|---|
| Weight | 0.0050kgs |
| Standard Coatings Available | No |
| Guide |
|
| Remark | - |
| Attention |
|
| Diameter φD | 1.5mm |
| Focal length | 1.0mm |
| Material | LaSF9 |
| Material | LaSF9 |
| Design Wavelength | 587.6nm |
| Coating | Uncoated |
| Centration | Please contact |
| Surface Quality (Scratch-Dig) | 40-20 |
| Lens Type | Plano convex |
| Diameter φD | φ1.5mm |
| Focal length f | 1.0mm |
| Back focal length fb | 0.56mm |
| Edge thickness te | 0.35mm |
| Center thickness tc | 0.8mm |
| Radius of curvature r | 0.85mm |
In stock
SKU
SLM-1.5-01P
$121.00
Customize product
Micro lenses are spherical plano convex/biconvex lenses with diameters smaller than 4mm. These small lenses are designed for use in equipment and instruments that demand lighter and smaller footprint optics.
