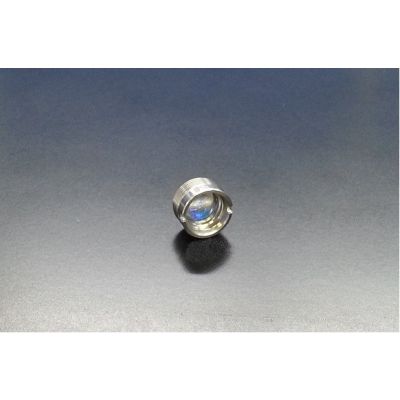

Collimating Lens 7.5mm Focal Length 350-700nm Coating
A375TA
Lenses for extract the collimate beam from the optical fiber or let the collimate beam into the optical fiber.
| Name | Collimating Lens 7.5mm Focal Length 350-700nm Coating |
|---|---|
| Weight | 0.0100kgs |
| Standard Coatings Available | No |
| Guide | - |
| Remark | - |
| Attention | - |
| Design wavelength | 780nm |
| Image Label | Collimating Lens 7.5mm Focal Length 350-700nm Coating |
| Focal length | 7.5mm |
| Focal length f | 7.5mm |
| Aperture Diameter | φ4.5mm |
| NA | 0.3 |
| WD | 5.4mm |
| Wavelength range | 350 - 700nm |
| Design wavelength | 780nm |
| Length D | 6.49mm |
| Mounting screw thread | M9x0.5 |
In stock
SKU
A375TA
€111.40
Customize product
Lenses for extract the collimate beam from the optical fiber or let the collimate beam into the optical fiber.
