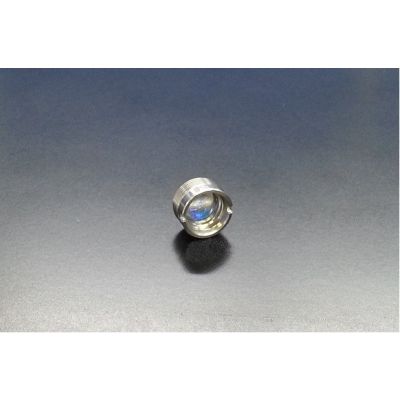

Collimating Lens 4.51mm Focal Length 1050-1700nm Coating
A355TC
Lenses for extract the collimate beam from the optical fiber or let the collimate beam into the optical fiber.
| Name | Collimating Lens 4.51mm Focal Length 1050-1700nm Coating |
|---|---|
| Weight | 0.0100kgs |
| Standard Coatings Available | No |
| Guide | - |
| Remark | - |
| Attention | - |
| Design wavelength | 780nm |
| Focal length | 4.51mm |
| Image Label | Collimating Lens 4.51mm Focal Length 1050-1700nm Coating |
| Focal length f | 4.51mm |
| Aperture Diameter | φ5.07mm |
| NA | 0.55 |
| WD | 2.66mm |
| Wavelength range | 1050 - 1700nm |
| Design wavelength | 780nm |
| Length D | 6.33mm |
| Mounting screw thread | M9x0.5 |
In stock
SKU
A355TC
€123.20
Customize product
Lenses for extract the collimate beam from the optical fiber or let the collimate beam into the optical fiber.
