fθ Lens

fθ-100-355THG

Skip to the beginning of the images gallery

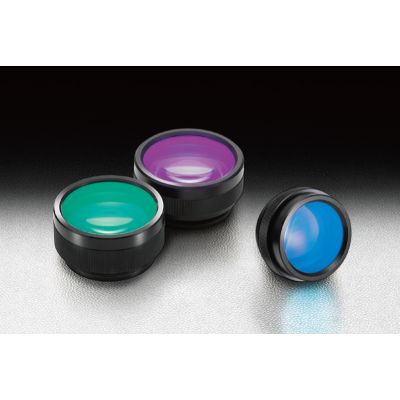

F-Theta Lenses are used for laser marking, bar code reader, laser micromachining and other laser applications.

◦F-Theta lenses convert a rotational movement of a galvanometer mirror into a linear motion on the focal plane by using distortion effects.
◦Telecentric type is also available that can be irradiated vertically to the focusing plane.
◦Also available for fundamental YAG laser (1064nm), harmonic lasers (266nm, 355nm, 532nm).

More Information

More Information
Name	fθ Lens
Weight	0.1300kgs
Standard Coatings Available	No
Guide	Transmittance value is a representative value only and is not guaranteed. If you have any questions, please feel free to contact our Sales Division. We accept orders to suit customized requirements. We also fabricate laser scanning systems which combine the galvanometer mirror and fθ lens as a unit.
Remark	-
Attention	We do not recommend using fθ lens in an imaging system because it is designed for a scanning type optical system. Please position the incident pupil of the fθ lens beam into the scanning system (galvanometer mirror). If the incident pupil is not in position of the beam scanning system, the optimum focusing spot cannot be achieved because of increased aberration.
A	80mm
D	9mm
Design wavelength	355nm
Focal length	100.1mm
Image Label	fθ Lens
Design wavelength	355nm
Focal length f	100.1mm
Entrance pupil diameter	φ14mm
Scanning angle	±15°
Scanning Range	φ52mm
Telecentric	○
Working distance (WD)	60.94mm
Transmittance [Incident angle 0°]	0.9
A	80mm
B	109.6mm
C	59mm
D	9mm
E	6mm
F	6mm
φG	φ112mm
φH	φ102mm(g6)
I	M100P1
φJ	φ84mm
K	130.6mm
