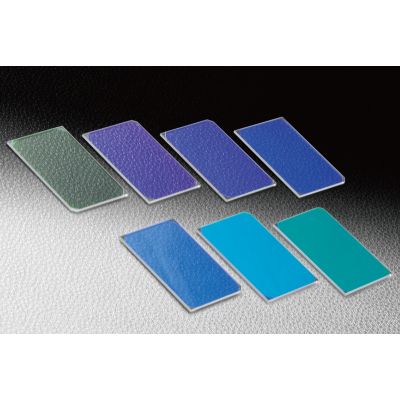

Sharp cut dichroic mirror 505nm
SDM505S
Divides sharply the color of wavelength by reflecting the short wavelength and transmitting the long wavelength. Suitable for use in Bio-imaging and flow cytometry applications.
◦The short wavelength has high reflectance, fits perfectly for use in excitation light and fluorescence imaging.
◦The feature of the structure of this mirror is to maintain the distance of the edges of the P polarization and the S polarization to be close to each other. It narrows the gap of the reflective range and the transmission range to provide a steep rise.
◦There is limited absorption due to the dielectric coating.
◦The feature of the structure of this mirror is to maintain the distance of the edges of the P polarization and the S polarization to be close to each other. It narrows the gap of the reflective range and the transmission range to provide a steep rise.
◦There is limited absorption due to the dielectric coating.
| Name | Sharp cut dichroic mirror 505nm |
|---|---|
| Weight | 0.0050kgs |
| Standard Coatings Available | No |
| Guide |
|
| Remark | - |
| Attention |
|
| Image Label | Sharp cut dichroic mirror 505nm |
| Reflectance | ＞99% |
| Transmittance | ＞85%/＞60% |
| Transition wavelength | 505nm |
| High reflectance range | 455 - 497nm |
| Reflectance | ＞99% |
| High transmittance range | 514 - 550nm/550 - 700nm |
| Transmittance | ＞85%/＞60% |
In stock
SKU
SDM505S
€290.00
Customize product
Divides sharply the color of wavelength by reflecting the short wavelength and transmitting the long wavelength. Suitable for use in Bio-imaging and flow cytometry applications.
