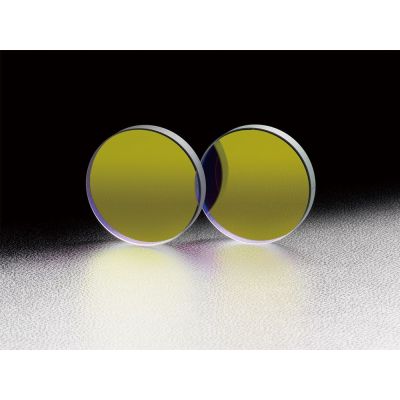

Harmonic Separator 30mm Diameter Wavelength 266nm
YHSQ-30C05-266
Used to separate or combine YAG (1064nm) and harmonic-converted laser beams (266nm, 355nm, 532nm) by wavelength. Five types with different reflectance wavelengths are available.
- Since a dielectric multilayer coating is used, there is no absorption in the coating and it can be used for laser beams with high energy density.
- Can be used for lasers with large beam diameters because of the plate type.
- The high reflectivity of 99.2% or more (98% or more for dual wavelength specifications) enables separation of reflected wavelengths from transmitted wavelengths.
| Name | Harmonic Separator 30mm Diameter Wavelength 266nm |
|---|---|
| Weight | 0.0090kgs |
| Standard Coatings Available | No |
| Attention |
▶Due to the effect of the refractive index and thickness of the substrate, the light path of transmitted light shifts several mm parallel to the incident light.
▶Transmittance and reflectance wavelength characteristics change when used at incident angles other than 45 degrees. ▶Use the side indicated by the arrow on the side of the substrates as the reflective side. Reflection on the back side may cause loss of light intensity and ghosting. ▶Transmitted light is rarely mixed with light of reflected wavelengths, but reflected light may be mixed with light of transmitted wavelengths. (5% to 15%) ▶The wavelength characteristic of transmittance varies depending on the polarization orientation of the laser. The specifications show average values for P and S polarization. Please check the actual laser polarization orientation before use. |
| Design wavelength | 266nm |
| Diameter φD | 30mm |
| Material | Synthetic fused silica |
| Surface flatness | λ/10 |
| Coating |
Front surface: Dielectric multilayer coating Rear surfaces: Multilayer antireflection coating |
| Incident angle | 45° |
| Parallelism | ＜5″ |
| Surface Quality (Scratch-Dig) | 10−5 |
| Clear aperture | 90% of the diameter |
| Thickness t | 5mm |
| Reflectance (Average P and S polarized light) | ＞99.2% at 266nm |
| Transmittance (Average P and S polarized light) |
R＜5％(T＞90％) at 532nm R＜5％(T＞90％) at 1064nm |
| Laser Damage Threshold | 2J/cm2 |
| *Laser pulse width 10ns, repetition frequency 20Hz |
