Motorized Linear Turret for 2 Objectives
◦Motorized turret has better accuracy and durability than traditional turrets due to elimination of mechanical detents.
◦Includes 5-phase micro stepping motor and can achieve a resolution of less than a micron at the tip of objective lens.
◦When used with the GIP-101B controller, objectives can be switched quickly and accuarately either manually, using the push buttons on the controller, or automatically, using the computer interface.

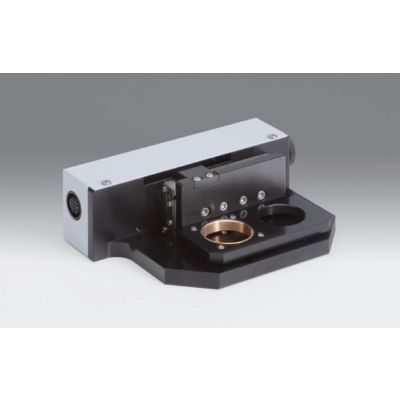

＜Lens switching slider: LACS-2H-A＞
◦Motorized lens switcher is designed to hold 2 objective lenses, to provide precise movements and feasible speed.
◦Using our proprietary extended contact bearing design to improve straightness.
|Name||Motorized Linear Turret for 2 Objectives|
|Image Label||Motorized Linear Turret for 2 Objectives|
|Travel||35mm (Switching distance)|
|Number of switched lens||
(1hole: datum hole, 1holes: one-directional center core adjustment)
|Travel||35mm (Switcing distance)|
|Motor||5-phase stepping motor (0.75A/phase)|
|Guide Method||Extended contact bearing|
|Feeding Mechanism||Ball screw φ4 (1mm lead)|
|Travel per 1 pulse||2μm(FULL)/0.1μm (20 divided)|
|Total pulse per table rotation||-|
|Switching reproducibility||≦ ±3μm (by the tip of objective lens)|
|Maximum travel speed (switch)||35mm/sec (A⇒B, about 1.0sec)|
|Objective lens size||M26P＝0.706|
