Lead-Screw Dovetail X Stages

TAS-1

Lead-Screw Dovetail X Stages
In stock
SKU
TAS-1
Leadscrew dovetail translation stages with rectangular form factor, enabling longer travel with fine adjustment.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Stage Size Travel Load Capacity Mounting Thread Delivery Price Add to cart
i

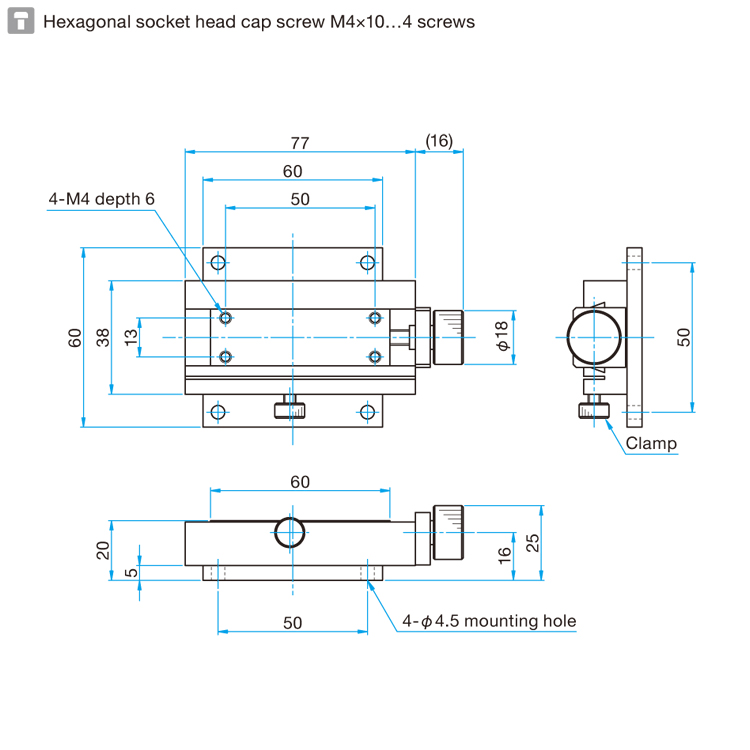

18X60mm Dovetail Bearing, Brass, X-Axis Stage, Center Leadscrew, +/-7.5mm, M4 Threads
TAS-20601
18×60mm ±7.5mm 147N (15.0kg) M4
in stock
€155.10
Guide Method Dovetail method
Primary Material Brass
Finish Super black chrome
Screw Pitch 0.5mm
Travel Accuracy / Straightness 20μm
Max. Moment Capacity / Pitch 0.5N・m
Max. Moment Capacity / Roll 0.5N・m
Max. Moment Capacity / Yaw 0.7N・m
Moment Stiffness / Pitch 0.25″/N・cm
Moment Stiffness / Roll 1.0″/N・cm
Parallelism 50μm
i

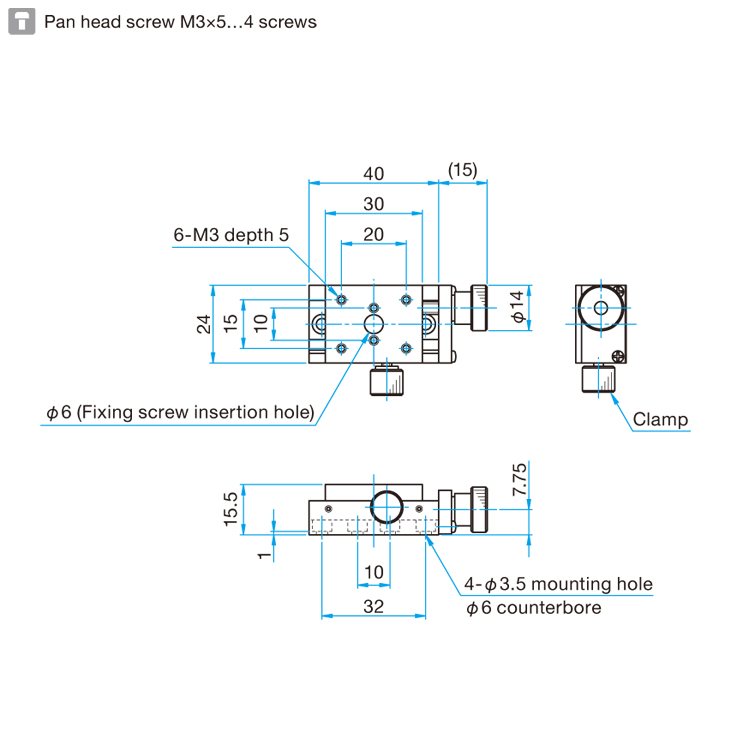

24X30mm Dovetail Bearing, Brass, X-Axis Stage, Center Leadscrew, +/-4mm, M3 Threads
TAS-24301
24×30mm ±4mm 68.7N (7.0kg) M3
1 week
€126.40
Guide Method Dovetail method
Primary Material Brass
Finish Super black chrome
Screw Pitch 0.5mm
Travel Accuracy / Straightness 20μm
Max. Moment Capacity / Pitch 0.5N・m
Max. Moment Capacity / Roll 0.5N・m
Max. Moment Capacity / Yaw 0.5N・m
Moment Stiffness / Pitch 0.51″/N・cm
Moment Stiffness / Roll 1.0″/N・cm
Parallelism 50μm
i

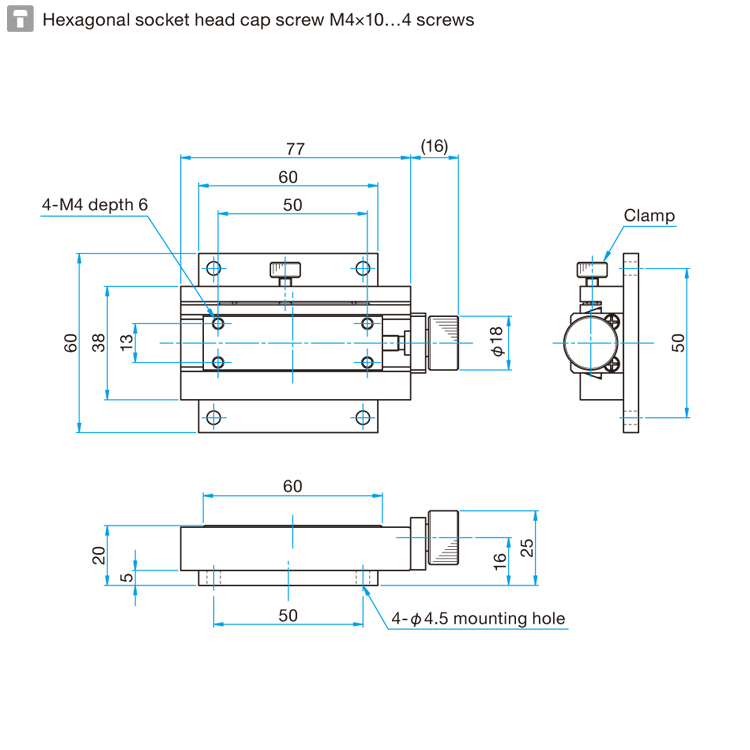

18X60mm Dovetail Bearing, Brass, X-Axis Stage, Center Leadscrew, +/-7.5mm, M4 Threads
TAS-20601R
18×60mm ±7.5mm 147N (15.0kg) M4
1 week
€155.10
Guide Method Dovetail method
Primary Material Brass
Finish Super black chrome
Screw Pitch 0.5mm
Travel Accuracy / Straightness 20μm
Max. Moment Capacity / Pitch 0.5N・m
Max. Moment Capacity / Roll 0.5N・m
Max. Moment Capacity / Yaw 0.7N・m
Moment Stiffness / Pitch 0.25″/N・cm
Moment Stiffness / Roll 1.0″/N・cm
Parallelism 50μm
i

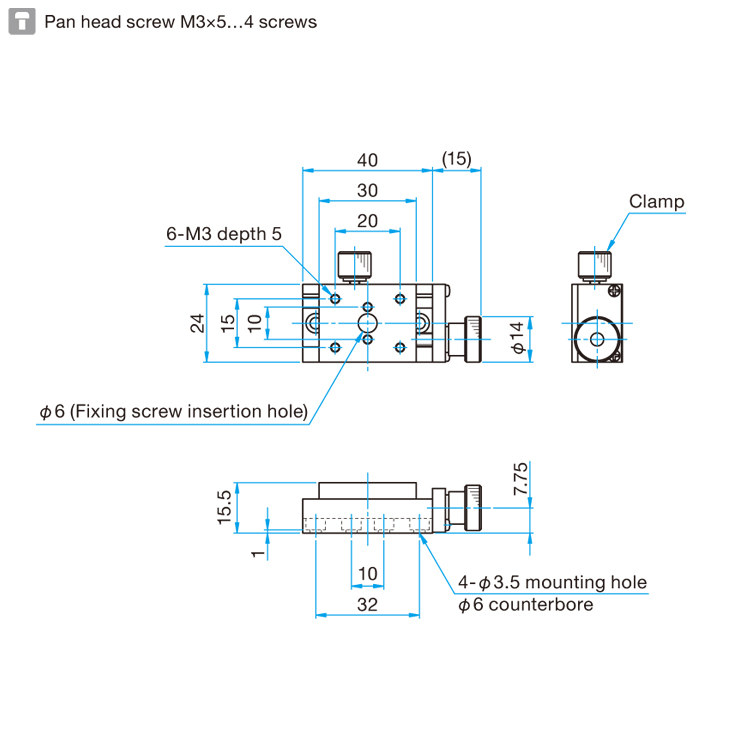

24X30mm Dovetail Bearing, Brass, X-Axis Stage, Center Leadscrew, +/-4mm, M3 Threads
TAS-24301R
24×30mm ±4mm 68.7N (7.0kg) M3
1 week
€126.40
Guide Method Dovetail method
Primary Material Brass
Finish Super black chrome
Screw Pitch 0.5mm
Travel Accuracy / Straightness 20μm
Max. Moment Capacity / Pitch 0.5N・m
Max. Moment Capacity / Roll 0.5N・m
Max. Moment Capacity / Yaw 0.5N・m
Moment Stiffness / Pitch 0.51″/N・cm
Moment Stiffness / Roll 1.0″/N・cm
Parallelism 50μm
i

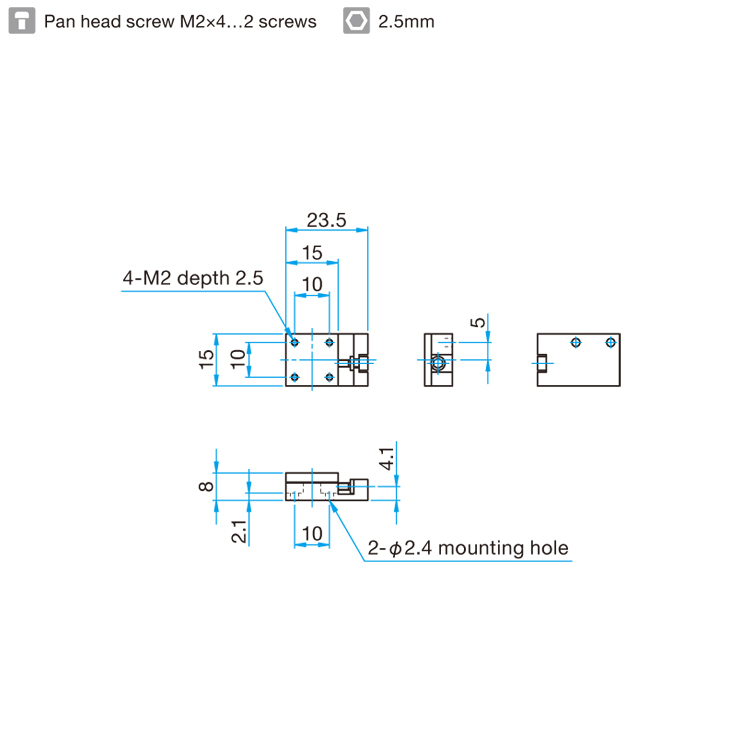

15X15mm Dovetail Bearing, Brass, X-Axis Stage, Center Leadscrew, +/-3mm, M2 Threads
TAS-151
15×15mm ±3mm 9.8N (1.0kg) M2
1 week
€90.20
Guide Method Dovetail method
Primary Material Brass
Finish Super black chrome
Screw Pitch 0.4mm
Travel Accuracy / Straightness 20μm
Max. Moment Capacity / Pitch 0.05N・m
Max. Moment Capacity / Roll 0.05N・m
Max. Moment Capacity / Yaw 0.02N・m
Moment Stiffness / Pitch -
Moment Stiffness / Roll -
Parallelism 50μm

You must be logged in to ask questions

Low cost, high stability, and long travel due to form factor. Large adjustment knob provides high sensitivity, (Except 15mm size)
