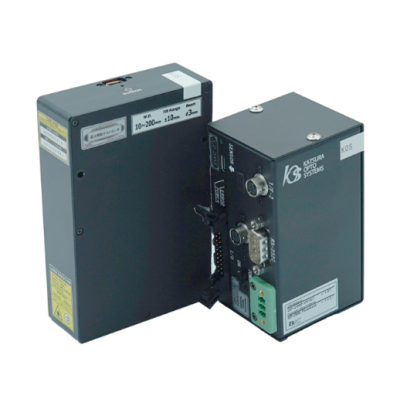

0.1-Arc Second Resolution Electronic Laser Autocollimator
HR-1100
This electronic laser autocollimator system offers an exceptionally high resolution of 0.1 arc second, delivering automated, sub-arcsecond, non-contact precision. The autocollimator head is separate from the electronic processing unit for streamlined setups in smaller spaces. A user-supplied computer is required to operate the system.
Common applications include calibrating goniometers, aligning optical components in laser systems, verifying the straightness or squareness of mechanical assemblies, and measuring small angular displacements in vibration or deformation testing. Their non-contact nature makes them ideal for delicate or high-precision setups.
| Name | 0.1-Arc Second Resolution Electronic Laser Autocollimator |
|---|---|
| Weight | 1.1000kgs |
| Attention | Requires 64-Bit, Windows 10 Computer to Operate (customer supplied) |
| Beam Diameter | 3mm |
| Type | High Resolution |
| Measurement | Two-Axis, Non-Contact, Angular (Pitch and Yaw) |
| Method | Autocollimation with Lateral-Effects Detector |
| Readout Resolution | 0.15' (Arc Minute) or 9" (Arc Second), or about 44 urad |
| Angular Measurement Range | +/-10' (Arc Minutes) Circular |
| Working Distance Range | 10-200mm |
| Repeatability | 0.1" (Arc Second) at 65mm working distance |
| Linearity | +/-1.5% |
| Autocollimator Laser Wavelength | 658nm (1mW max, Class 2) |
| Minimum Reflectivity Requirement for Mirror | 80% Specular @658nm |
| Laser Beam Diameter | 3.0mm (1/e2) |
| Measurement Frequency | 30Hz |
| Contents of Box | Autocollimator Head, RS-232C Cable, AC power adapter, USB mini B Cable (1M), Ground wires, Manuals and software |
| Additional Required Items (Sold Separately) | Computer, Windows 10, 64 Bit (customer supplied) |
