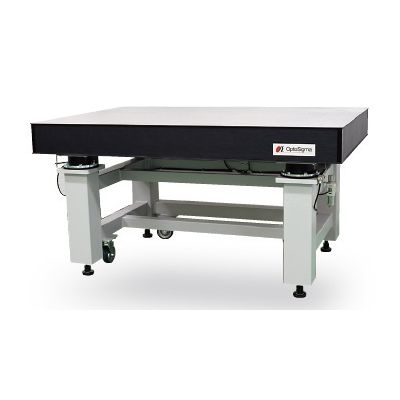

Large Vibration Isolation Systems with Aluminum Honeycomb Top (Automatic Vertical Leveling)

HOA-2412-250LA

Precision air spring vibration isolation system. Best suited for isolating vertical vibrations.
◦This vibration isolator rapidly attenuates vibrations transmitted to mounted equipment and instruments, and is essential for mounting equipment and instruments that are affected by vibration.
◦The bench is lightweight with excellent stiffness due to the aluminum honeycomb core.
◦The top surface of the bench is magnetic stainless steel plate, with tapped holes (M6 25×25mm matrix) over the entire surface allowing both magnetic type and screw fixing type systems or equipment to be mounted.
◦The manual leveling system does not require a continuous air supply. The isolators can be pressurized with just a hand air pump.
More Information
Name Large Vibration Isolation Systems with Aluminum Honeycomb Top (Automatic Vertical Leveling)
Weight 580.0000kgs
Guide
  • We can produce sizes not listed in the catalog. Contact our International Sales Division for more information.
  • When installed in locations with no air source, use the silent air compressor (PC-10H-S) which can be used indoors. (WEB Reference Catalog Code/W6003)
Attention
  • The vibration isolator may not perform normally if used under an extremely offset load or with instruments or equipment having a very high center of gravity.
  • Because of the weight, delivery cost will be quoted separately.Use the carry-in route and installation environment question sheet. (WEB Reference Catalog Code/W6001)
  • Use the Air Spring Vibration Isolator Model Selection Check Sheet to check usage, load capacity, or unclear points.(WEB Reference Catalog Code/W6002)
Image Label Large Vibration Isolation Systems with Aluminum Honeycomb Top (Automatic Vertical Leveling)
A x B 2400mm x 1200mm
H 800mm
T 250mm
Type Automatic Vertical Leveling
A×B 2,400×1,200mm
H 800mm
T 250mm
Load capacity 3,922N(about 400kgf)
In stock
SKU
HOA-2412-250LA
€14,399.00

Delivery in : 6-12 weeks

Precision air spring vibration isolation system. Best suited for isolating vertical vibrations.
