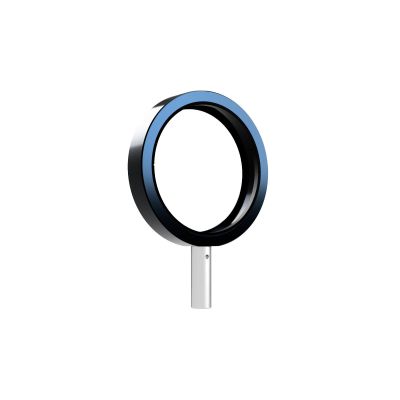

Fixed Lens Holder

LHF-130

Skip to the beginning of the images gallery

It can firmly fix from a thin single lens to a thick achromatic lens. Since the outer diameter of the holder is large, it has an effect on blocking stray light.

Details

◦For large diameter lenses over 80mm, “A type” holders are available for thick lenses .

More Information

More Information
Name	Fixed Lens Holder
Weight	0.6500kgs
Guide	Post length can be changed by specifying the post length when you place an order. Replacement of the post is free of charge, but we may charge the difference in price depending on the length. Contact our Sales Division for more information. Thin frame lens holders (LHF-S). WEB Reference Catalog Code/W4515 Lens holder with rotation center adjustment (LHCM) is also available. WEB Reference Catalog Code/W4512-2
Attention	-
Compatible Optics Diameter φA	φ130mm
Compatible Optics Thickness	4 - 18mm
Clear Aperture φB	φ122mm
C	M131.1 P1
Optical Axis Height D	75mm
E	11mm
φG	φ152mm
F	26mm
φK	φ20mm
L	M6

In stock

SKU

LHF-130

€84.90

It can firmly fix from a thin single lens to a thick achromatic lens. Since the outer diameter of the holder is large, it has an effect on blocking stray light.
