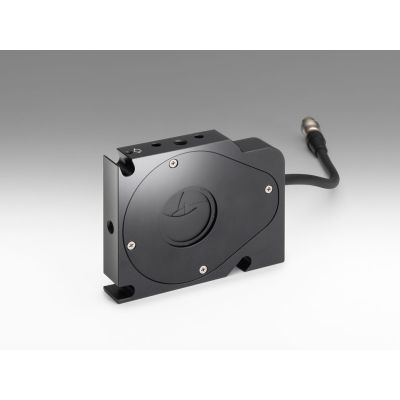

Blade Type Automatic Shutter

C60-SSH-25RA

Skip to the beginning of the images gallery

Mechanical electromagnetic shutter to turn on and off the laser or to emit for a certain period of time remotely.
Please use with designated controller and cable.

Details

◦In addition to assemble with a post, SSH-RA can be assembled with cage system. It is small and space-saving and faster opening/closing than the conventional products.
◦It can be operated with an external trigger or PC via the shutter controller SSH-C2B.

More Information

More Information
Name	Blade Type Automatic Shutter
Weight	0.2080kgs
Guide	Please use SSH-C2B as a controller. WEB Reference Catalog Code/W4105 Please use SSH-CA2-LORA(cable length 2m) and SSH-CA2-LOAB(extension cable, cable length 2m) as a cable.
Attention	The guideline for LIDT is 1mW/mm² (CW) in the visible range. However, the overall power should not exceed 5mW. We can provide a sample of the blade itself prior to purchase when it is used out of the range of power resistance. Please contact our sales for more information. The blade type automatic shutter cannot be used with high-power lasers or high-energy pulse lasers. Please use high power laser shutter unit. WEB Reference Catalog Code/W4110 The controller SSH-CRA cannot be used with SSH-RA. The opening/closing speed is 10% -90% of the aperture as a standard value and is not guaranteed. Lifetime is a reference value and not guaranteed. Please refer for the setting of the 2 axis shutter controller SSH-C2B before ver1.00,003 in user setting.
Aperture Diameter	25.5mm
Applicable size of cage	C60
Opening speed (low/high)	7ms/ 3ms
Closing speed (low/high)	7ms/ 4ms
Controller setting (low/high)	SSH25-L/ SSH25-H
Lifetime (low/high) reference value	1 million times/ 100 thousand times
Weight	0.208㎏

In stock

SKU

C60-SSH-25RA

€419.70

Mechanical electromagnetic shutter to turn on and off the laser or to emit for a certain period of time remotely.
Please use with designated controller and cable.

Blade Type Automatic Shutter
