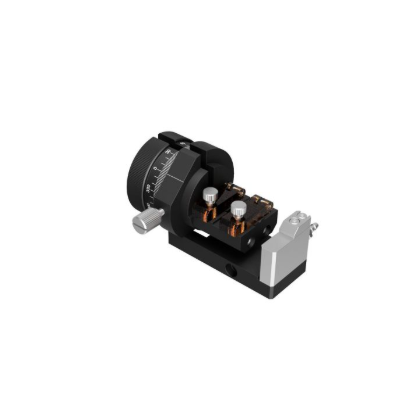

Rotating Fiber Holder (with adsorption function) – Ø125–250 µm – Left
FHRMW-125-250L
This rotary fiber holder is used to rotate and adjust the polarization plane of polarization maintaining fiber. It is attached to the holder mounting section of the alignment unit.
A magnetizing bolt is built into the plastic holder, and the magnetic force of the fiber holder's magnet gently clamps the polarization-maintaining fiber.
Fiber retention part is removable by magnet.
This product comes with a 2-meter vacuum suction tube.
Can be attached to the DAU-8100A series alignment unit.
Fiber retention part is removable by magnet.
This product comes with a 2-meter vacuum suction tube.
Can be attached to the DAU-8100A series alignment unit.
| Name | Rotating Fiber Holder (with adsorption function) – Ø125–250 µm – Left |
|---|---|
| Weight | 0.1200kgs |
| Guide |
We have two types of fiber holders: the FHRAW series with a suction function at the tip and the FHRA series without a suction function. We also have three jacket diameters of 250 μm, 400 μm, and 900 μm. All cladding diameters are specified at 125 μm. Rotating fiber holders (FHRM series) are also available. |
| Attention | When removing the fiber retention unit, please do so at the 0 degree position. |
| Travel | 360° |
| Fiber optic jacket diameter | 250μｍ |
| Fiber optic cladding diameter | 125μｍ |
| Material | Black anodized |
| Finish | Black anodized |
| Weight | 0.12kg |
| Fitting part number | LC-0425-M3(Nihon Pisco Co., Ltd.) Applicable tube inner diameter：φ2.5 |
Out of stock
SKU
FHRMW-125-250L
€803.00
