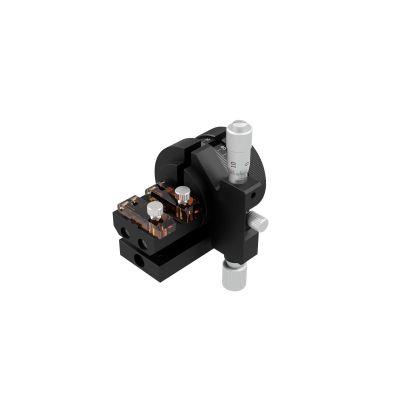

Rotating Fiber Holder with Coarse/Fine Adjustment - Ø125–250 µm – Right

FHRS-125|250R

Skip to the beginning of the images gallery

Rotating fiber holder with coarse/fine adjustment to rotate and align the polarization plane of polarization-maintaining fibers. It is used by attaching it to the holder mounting section of the alignment unit.

Details

The plastic pushers have built-in magnetizing set bolts, gently clamps the polarization-maintaining fiber by the magnetic force of the fiber holder's magnets.

Attachment to the fiber alignment unit is a one-touch operation using magnets for easy connection and disconnection.

Can be attached to the DAU series fiber alignment unit.

More Information

More Information
Name	Rotating Fiber Holder with Coarse/Fine Adjustment - Ø125–250 µm – Right
Weight	0.2000kgs
Guide	We have two types of fiber holders: the FHRSW series with a suction function at the tip and the FHRS series without a suction function. We also have three jacket diameters of 250 μm, 400 μm, and 900 μm. All cladding diameters are specified at 125 μm. The FHRSW series comes with a vacuum suction tube (2m).
Attention	When removing the fiber retention unit, please do so at the 0 degree position. A vacuum pump is also required to use the adsorption mechanism. Please contact our sales department for information on vacuum pump peripheral equipment.
Fiber optic cladding diameter	125μm
Fiber optic jacket diameter	250μm
Travel	Coarse: 360°, Fine: ±5°
Fine Resolution	0.026°/DIV
Material / Finish	Aluminum / Black anodized

Out of stock

SKU

FHRS-125|250R

€1,155.00

Rotating Fiber Holder with Coarse/Fine Adjustment - Ø125–250 µm – Right

Resources & Downloads
