The plastic pushers have built-in magnetizing set bolts, gently clamps the polarization-maintaining fiber by the magnetic force of the fiber holder's magnets.
Attachment to the fiber alignment unit is a one-touch operation using magnets for easy connection and disconnection.
Can be attached to the DAU series fiber alignment unit.

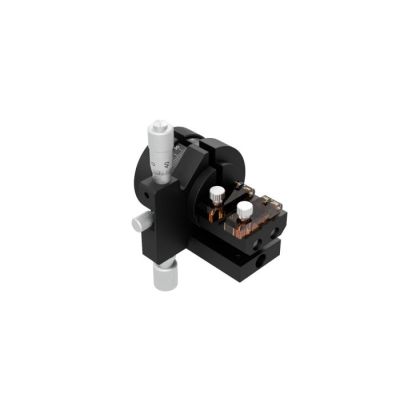

Rotating Fiber Holder with Coarse/Fine Adjustment - Ø125–250 µm – Left
Weight
0.1600kgs
Guide
We have two types of fiber holders: the FHRSW series with a suction function at the tip and the FHRS series without a suction function. We also have three jacket diameters of 250 μm, 400 μm, and 900 μm. All cladding diameters are specified at 125 μm.
The FHRSW series comes with a vacuum suction tube (2m).
Attention
When removing the fiber retention unit, please do so at the 0 degree position. A vacuum pump is also required to use the adsorption mechanism. Please contact our sales department for information on vacuum pump peripheral equipment.
