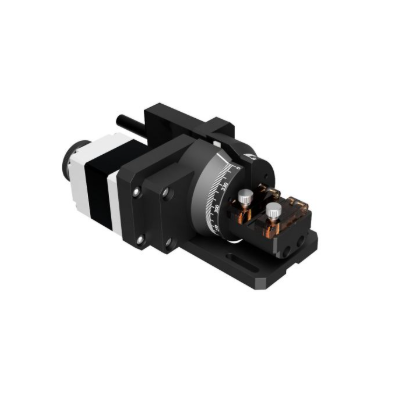

Automatic Rotating Fiber Holder – Ø125–250 µm – Left
FHRA-125|250L
The rotary fiber holder is used to rotate and adjust the polarization plane of polarization-maintaining fiber. This fiber holder is attached to the holder mounting part of the alignment unit and requires the FHRA-BP (sold separately).
In addition, the fiber retention part is removable with magnets for smooth fiber attachment and removal.
In addition, the fiber retention part is removable with magnets for smooth fiber attachment and removal.
A magnetizing bolt is built into the plastic holder, and the magnetic force of the fiber holder's magnet gently clamps the polarization-maintaining fiber.
The fiber retention part can be removed by a magnet.
By using the auto-rotating fiber holder fixing plate (FHRA-BP), this fiber holder can be incorporated into the DAU-8100A series alignment unit.
The fiber retention part can be removed by a magnet.
By using the auto-rotating fiber holder fixing plate (FHRA-BP), this fiber holder can be incorporated into the DAU-8100A series alignment unit.
| Name | Automatic Rotating Fiber Holder – Ø125–250 µm – Left |
|---|---|
| Weight | 0.4000kgs |
| Guide |
We have two types of fiber holders: the FHRAW series with a suction function at the tip and the FHRA series without a suction function. We also have three jacket diameters of 250 μm, 400 μm, and 900 μm. All cladding diameters are specified at 125 μm. The FHRAW series comes with a vacuum suction tube (2 m). Rotating fiber holders (FHRM series) are also available. |
| Attention | When removing the fiber retention unit, please do so at the 0 degreeposition. In addition, a vacuum pump is required to use the suction mechanism. Please contact our sales department for information on vacuum pump peripheral equipment. |
Out of stock
SKU
FHRA-125|250L
€1,507.00
