Tube Lenses, 2x, f=400mm
TL-VIS-2.0X

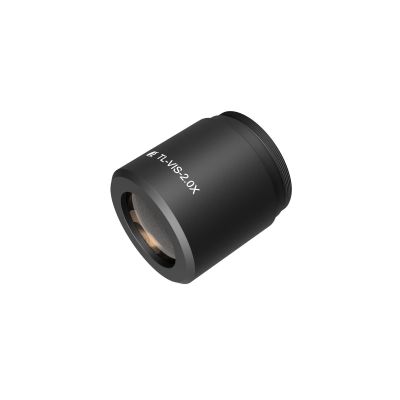

TL-VIS-2.0X is an apochromatically corrected infinity-corrected tube lens designed for diffraction-limited performance across the entire field of view. It functions as an actual imaging lens to create a well-corrected infinity optical system when combined with infinity-corrected objectives from leading manufacturers. It is ideal for high-resolution imaging, biomedical research, machine vision, and laser scanning applications.
| Name | Tube Lenses, 2x, f=400mm | |
|---|---|---|
| Weight | 0.0780kgs | |
| Standard Coatings Available | No | |
| Guide | ▶Compatible with infinity-corrected objectives. |
|
| Attention | ▶Please use with infinity-corrected objectives. They are not compatible with finite conjugate objectives. |
|
| AR coating wavelengths | 435 - 656nm | |
| Mounting screw thread | M32 x 0.5 | |
| Pupil diameter | φ12.0 mm | |
| Weight | 0.078 kg | |
| Focal length f | 400 mm | |
| Image size | φ50.0 | |
| Magnification | 2.0x |
Out of stock
SKU
TL-VIS-2.0X
₹77,418.00
Customize product
TL-VIS-2.0X is an apochromatically corrected infinity-corrected tube lens designed for diffraction-limited performance across the entire field of view. It functions as an actual imaging lens to create a well-corrected infinity optical system when combined with infinity-corrected objectives from leading manufacturers. It is ideal for high-resolution imaging, biomedical research, machine vision, and laser scanning applications.
