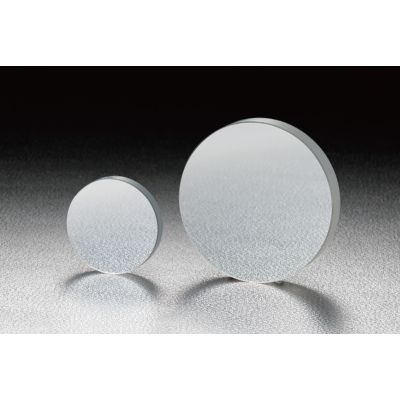

Silver Mirror 50mm Diameter Wavelength 400-2000nm
TFAG-50C08-10
Silver (Ag) coated mirrors have high reflectance over a broad range from visible to infrared wavelengths. Since it is coated with a protective layer on the silver, it can be used long-term without oxidation.
◦For the wavelength range from the visible to infrared, higher reflectance than aluminum mirror can be obtained.
◦Incident dependence is smaller than the dielectric multilayer coating, it can use at various incident angles.
◦Since it is coated by protective layer, a scratch hardly occurs even if it is rubbed with a cloth.
◦Incident dependence is smaller than the dielectric multilayer coating, it can use at various incident angles.
◦Since it is coated by protective layer, a scratch hardly occurs even if it is rubbed with a cloth.
| Name | Silver Mirror 50mm Diameter Wavelength 400-2000nm |
|---|---|
| Weight | 0.0400kgs |
| Standard Coatings Available | No |
| Guide |
|
| Remark | - |
| Attention |
|
| Diameter φD | 50mm |
| Material | BK7 |
| Coating | Ag+Dielectric Multi-layer Coating |
| Reflectance | R≧Ave.97.5%(450～2000nm) Ave. : Average |
| Surface flatness of substrate | λ/10 |
| Parallelism | ＜3′ |
| Surface Quality (Scratch-Dig) | 40-20 |
| Wavelength Range | 400 - 2000nm |
| Diameter φD | φ50mm |
| Thickness t | 8mm |
| Rear surface | Polished |
In stock
SKU
TFAG-50C08-10
₹17,864.00
Customize product
Silver (Ag) coated mirrors have high reflectance over a broad range from visible to infrared wavelengths. Since it is coated with a protective layer on the silver, it can be used long-term without oxidation.
