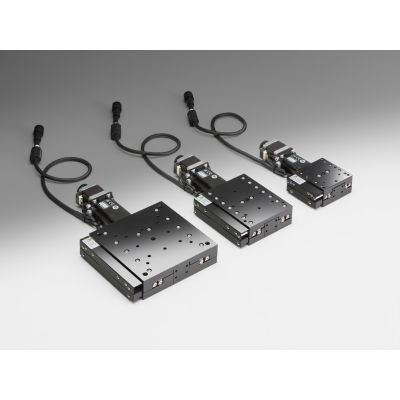

Motorized Aluminum Extended Contact Single Axis Stage 80mm Size 50mm Travel
HPS80-50X-M5
×
Motorized stages with ball screws and extended contact bearings offer mid to upper level performance at a low price.
| Name | Motorized Aluminum Extended Contact Single Axis Stage 80mm Size 50mm Travel |
|---|---|
| Weight | 1.0000kgs |
| Guide |
|
| Attention | - |
| Image Label | Motorized Aluminum Extended Contact Single Axis Stage 80mm Size 50mm Travel |
| Travel | 50mm |
| Load Capacity | 73.5N (7.5kg) |
| Travel | 50mm |
| Stage Size | 100×80mm |
| Feed Screw | Ball screw diameter φ6mm、1mm lead |
| Positioning Slide | Extended Contact Ball Guide |
| Stage Material | Aluminium |
| Finish | Black anodized |
| Resolution (Full) | 2μm/pulse |
| Resolution (Half) | 1μm/pulse |
| Minimum Incremental Motion (refurence) | 0.1μm |
| MAX Speed | 10mm/sec |
| Positioning Accuracy | 25μm |
| Positional Repeatability | ±2μm |
| Load Capacity | 73.5N(7.5kgf) |
| Moment Stiffness / Pitch | 0.5"/N･cm |
| Moment Stiffness / Yaw | 0.5″ |
| Moment Stiffness / Roll | 0.2″ |
| Lost Motion | 2μm |
| Backlash | 2μm |
| Parallelism | 40μm |
| Running Parallelism | 10μm |
| Pitch | 30″ |
| Yaw | 25″ |
| Sensor Part Number | Micro photo sensor : GP1S097HCZ(Sharp Corporation) |
| Limit Sensor | Equipped (NORMAL CLOSE) |
| Origin Sensor | Equipped (NORMAL OPEN) |
| Proximity Origin Sensor | None |
In stock
SKU
HPS80-50X-M5
₹87,137.60
Customize product
Motorized stages with ball screws and extended contact bearings offer mid to upper level performance at a low price.
