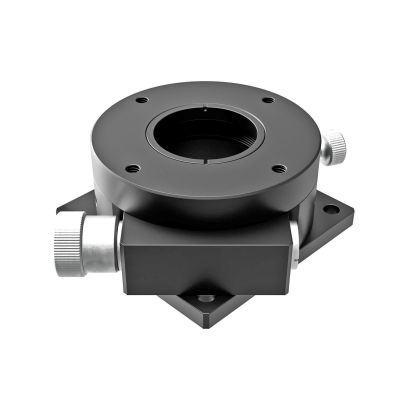

60mm Diameter, Brass, Lapped-Surface Bearing Rotation Stage, 360 Deg Fine Rotation Only, Worm-gear Drive, M4 Threads

KSW-606

An integrated worm gear drive makes these rotation stages are capable of precise adjustment over a full 360°rotation.

More Information
Name	60mm Diameter, Brass, Lapped-Surface Bearing Rotation Stage, 360 Deg Fine Rotation Only, Worm-gear Drive, M4 Threads
Weight	0.5500kgs
Guide	-
Attention	KSW-256 and KSW-1006 do not have a clamping mechanism. KSW-256 and KSW-406 do not have a vernier scale. KSW-1006 does not have a clamping mechanism.
Image Label	Rotation Stage Brass 60mm Worm Gear 360 Degree Adjustment with Aperture and Locakable with Metric Holes
Stage Size	φ 60mm
Rotation Range	Coarse :－　Fine :360°
Load Capacity	98N (10.0kg)
Mounting Thread	M4
Primary Material	Brass
Finish	Super black chrome
Guide Method	Lapping method
Stage Size	φ60mm
Rotation Range	Coarse :- Fine :360°
Scale Readable Resolution	10′
Knob Rotation Angle	about 4°/rotation
Load Capacity	98.0N(10.0kgf)
Max. Moment Capacity / Pitch	0.49N･m
Moment Stiffness	0.9″/N･cm
Parallelism	50μm
Eccentricity	20μm
Wobble	20μm

In stock

SKU

KSW-606

₹44,413.60

An integrated worm gear drive makes these rotation stages are capable of precise adjustment over a full 360°rotation.
