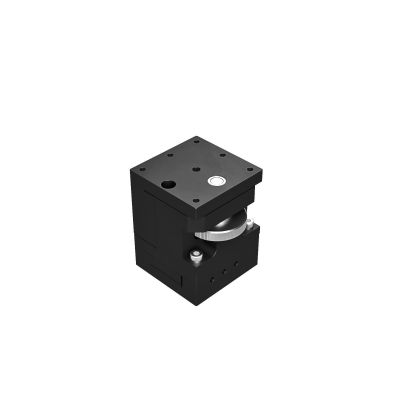

40X40mm Dovetail Bearing, Brass, XZ-Axis Stage, Center Leadscrew, +/-7mm, 6-32 Threads
TASB-404UU
×
XZ axis translation stages with horizontal top plate.
Space saving design offers compact footprints.
Appropriate for system integration.
Space saving design offers compact footprints.
Appropriate for system integration.
| Name | 40X40mm Dovetail Bearing, Brass, XZ-Axis Stage, Center Leadscrew, +/-7mm, 6-32 Threads |
|---|---|
| Weight | 0.4000kgs |
| Guide |
|
| Attention | - |
| Image Label | Preset XZ Stage 40×40mm Size Inch Threads 14mm X 5mm Z Travel |
| Stage Size | 40×40mm |
| Travel | X axis : ±7mm Z axis : ＋5・-0 |
| Load Capacity | 29.4N (3.0kg) |
| Guide Method | Dovetail method |
| Primary Material | Brass |
| Finish | Super black chrome |
| Screw Pitch | 0.5mm |
| Travel Accuracy / Straightness | 30μm |
| Max. Moment Capacity / Pitch | 0.5N･m |
| Max. Moment Capacity / Roll | 0.5N･m |
| Max. Moment Capacity / Yaw | - |
| Moment Stiffness / Pitch | 5.2″/N･cm |
| Moment Stiffness / Roll | 3.1″/N･cm |
| Parallelism | 150μm |
In stock
SKU
TASB-404UU
₹24,780.80
Customize product
XZ axis translation stages with horizontal top plate.
Space saving design offers compact footprints.
Appropriate for system integration.
Space saving design offers compact footprints.
Appropriate for system integration.
