80X80mm EXC Bearing, Steel, XYZ-Axis Stage, Side Hex Screw, +/-12.5/5.0mm, M4 Threads, Right-handed

TSD-805SRFP

Skip to the beginning of the images gallery

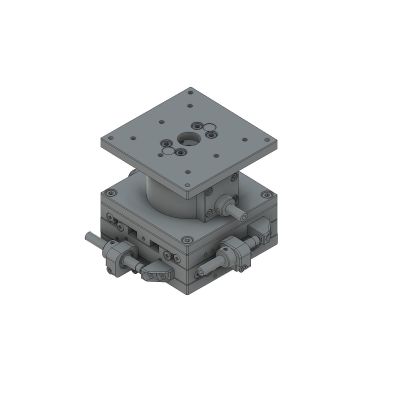

This XYZ assembly incorporates an integrated (XY) axis steel linear stage and a (Z) vertical axis steel stage with a horizontal flat top plate.
There are options for micrometer position and fine pitch screws.

Details

See the Left Handed version of this product

TSD-805SFP

More Information

More Information
Name	80X80mm EXC Bearing, Steel, XYZ-Axis Stage, Side Hex Screw, +/-12.5/5.0mm, M4 Threads, Right-handed
Weight	2.6000kgs
Guide	The part number suffix FP indicates products with fine-pitch screws instead of standard micrometers. Fine Pitch screws have a screw pitch of 0.25mm and require a hex wrench or the optional hex wrench with knob (KCL) for adjustment.(WEB Reference Catalog Code/W8008-3)
Attention	The structure does not allow upside down installation since the spring inside the stage might not be able to withstand the load and may stretch. Since the structure uses the principle of leverage, the feed rate fluctuates against the scale depending on the travel (about ±0.02mm for micrometer head 0.5mm/rotation).
Image Label	Steel Extended Contact XYZ Stage 80x80mm Size Side DriveMetricThreads Right Hand with Fine Pitch Screw
Stage Size	80×80mm
Travel	XY axis±12.5mm Z axis±5mm
Load Capacity	39.2N (4.0kg)
Mounting Thread	M4
Micrometer Position	Side
Lead of Actuator	0.25mm
Micrometer Readable Resolution	-
