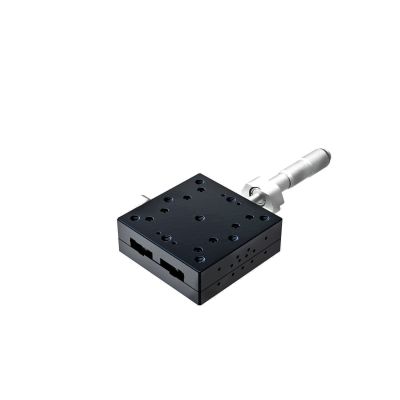

65X65mm Ball Bearing, Aluminum, X-Axis Stage, Center Micrometer, +/-12.5mm, 1/4-20 Threads
TADC-651C25UU
×
Aluminum translation stage with high stiffness bearing ways. Cost effective and light weight.
| Name | 65X65mm Ball Bearing, Aluminum, X-Axis Stage, Center Micrometer, +/-12.5mm, 1/4-20 Threads |
|---|---|
| Weight | 0.3100kgs |
| Guide | - |
| Attention |
|
| Image Label | Aluminum Linear X Stage 65mm Extended Contact Bearing Ways Center Micrometer and Lockable with Inch Holes |
| Stage Size | 65×65mm |
| Travel | ±12.5mm |
| Load Capacity | 196N (20.0kg) |
| Mounting Thread | 1/4-20UNC |
| Micrometer Position | Center |
| Lead of Actuator | 0.5mm |
| Micrometer Readable Resolution | 0.01mm |
In stock
SKU
TADC-651C25UU
₹15,637.60
Customize product
Aluminum translation stage with high stiffness bearing ways. Cost effective and light weight.
