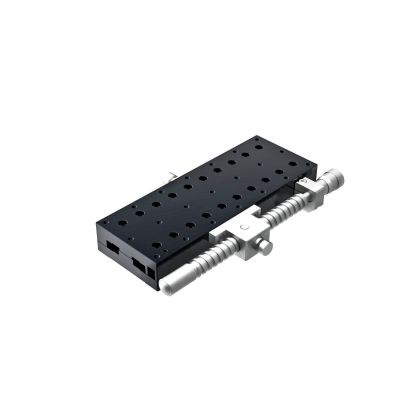

60X160mm Crossed-Roller Bearing, Aluminum, X-Axis Stage, Side Differential Micrometer, +/-6.5mm, M4 Threads
TAM-60161SDM
×
High precision crossed-roller linear translation stages with black anodized aluminum bodies.
| Name | 60X160mm Crossed-Roller Bearing, Aluminum, X-Axis Stage, Side Differential Micrometer, +/-6.5mm, M4 Threads |
|---|---|
| Weight | 1.1000kgs |
| Guide | - |
| Attention | - |
| Image Label | Aluminum Crossed Roller X Stage 60×160mm Size Side Drive Metric Threads with Differential Micrometer |
| Stage Size | 60×160mm |
| Travel | ±25mm(SDM type :Coarse：±35mm Fine：±3mm) |
| Load Capacity | 392N (40.0kg) |
| Mounting Thread | M4 |
| Micrometer Position | Side |
| Lead of Actuator | Coarse：5mm Fine：0.5mm |
| Micrometer Readable Resolution | 0.01mm |
| Guide Method | Crossed roller |
| Primary Material | Aluminum |
| Finish | Black anodized |
| Travel Accuracy / Straightness | 2μm |
| Travel Accuracy / Pitch | 40″ |
| Travel Accuracy / Yaw | 25″ |
| Max. Moment Capacity / Pitch | 43.2N･m |
| Max. Moment Capacity / Roll | 41.2N･m |
| Max. Moment Capacity / Yaw | 39.2N･m |
| Moment Stiffness / Pitch | 0.05″/N･cm |
| Moment Stiffness / Roll | 0.25″/N･cm |
| Moment Stiffness / Yaw | - |
| Parallelism | 50μm |
| Running Parallelism | 15μm |
In stock
SKU
TAM-60161SDM
₹55,044.00
Customize product
High precision crossed-roller linear translation stages with black anodized aluminum bodies.
