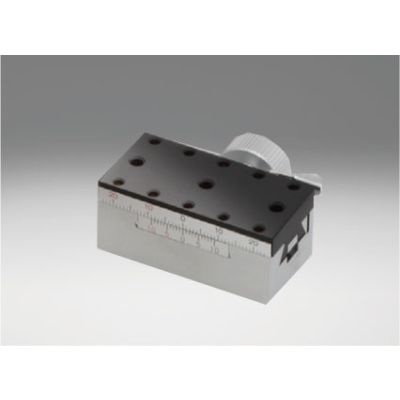

25X50mm Dovetail Bearing, Brass, X-Axis Stage, Rack&Pinion Drive, +/-10mm, M4 Threads

TARW-25501

Rack and pinion dovetail translation stages, suitable for frequent use that require quick morement and long travel.

More Information
Name	25X50mm Dovetail Bearing, Brass, X-Axis Stage, Rack&Pinion Drive, +/-10mm, M4 Threads
Weight	0.2200kgs
Guide	The TAR-25 series can be delivered with more than one movable table. Contact our International Sales Division for more information.
Attention	Since the feed handle of TARW-25501 protrudes from the bottom surface of the stage, it cannot be directly secured on a flat surface. A recess is required using a spacer or the like.
Image Label	Rack and Pinion Dovetail X Stage 25×50mm Size Metric Threads 20mm Travel
Stage Size	25×50mm
Travel	10mm
Load Capacity	78.4N (8.0kg)
Lead of Actuator	about 20mm
Vernier Scale	0.1mm
Guide Method	Dovetail method
Primary Material	Brass
Finish	Super black chrome
Travel Accuracy / Straightness	20μm
Max. Moment Capacity / Pitch	1.2N･m
Max. Moment Capacity / Roll	0.6N･m
Max. Moment Capacity / Yaw	1.0N･m
Moment Stiffness / Pitch	1.22″/N･cm
Moment Stiffness / Roll	2.45″/N･cm
Parallelism	50μm

In stock

SKU

TARW-25501

₹13,015.20

Rack and pinion dovetail translation stages, suitable for frequent use that require quick morement and long travel.
