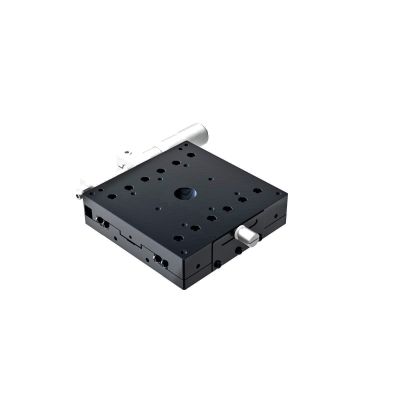

100X100mm Crossed-Roller Bearing, Aluminum, X-Axis Stage, Side Micrometer, +/-12.5mm, M4 Threads, Right-handed

TAM-1001SR

×
3d-simple-product
main product photo
High precision crossed-roller linear translation stages with black anodized aluminum bodies.

See the Left Handed version of this product
TAM-1001S




More Information
Name 100X100mm Crossed-Roller Bearing, Aluminum, X-Axis Stage, Side Micrometer, +/-12.5mm, M4 Threads, Right-handed
Weight 0.9000kgs
Guide -
Attention
  • Micrometer brackets may extend above the top surface of some stages. Check drawings for detailed information.
  • Note that based upon payload size, rated travel could be reduced.
Image Label Aluminum Crossed Roller X Stage Size Side Drive Metric Threads Right Hand
Stage Size 100×100mm
Travel ±12.5mm
Load Capacity 490N (50.0kg)
Mounting Thread M4
Micrometer Position Side
Lead of Actuator 0.5mm
Micrometer Readable Resolution 0.01mm
In stock
SKU
TAM-1001SR
₹34,091.20

Delivery in : 1 week

custom product
Customize product
Add to Wish List
High precision crossed-roller linear translation stages with black anodized aluminum bodies.
