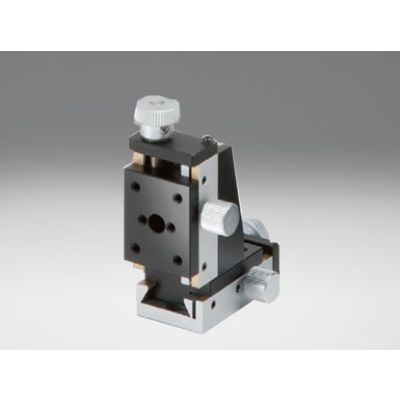

24X30mm Dovetail Bearing, Brass, XZ-Axis Stage, Center Leadscrew, +/-4mm, M3 Threads

TAS-24304L

XZ axis leadscrew dovetail translation stages with rectangular form factor, enabling longer travel with fine adjustment.

More Information
Name	24X30mm Dovetail Bearing, Brass, XZ-Axis Stage, Center Leadscrew, +/-4mm, M3 Threads
Weight	0.4200kgs
Guide	Control the TAS-154L with a hex wrench. Micrometer brackets may extend above the top surface of some stages. Check drawings for more information.
Attention	Note that the TAS-154L has no clamping mechanism. Micrometer brackets may extend above the top surface of some stages. Check drawings for more information.
Image Label	Leadscrew XZ Stage 24×30mm Size Metric Threads 8mm Travel
Stage Size	24×30mm
Travel	X axis : ±4mm Z axis : ±4mm
Load Capacity	4.9N (0.5kg)
Lead of Actuator	0.5mm
Vernier Scale	-
Guide Method	Dovetail method
Primary Material	Brass
Finish	Super black chrome
Travel Accuracy / Straightness	20μm
Max. Moment Capacity / Pitch	0.5N･m
Max. Moment Capacity / Roll	0.2N･m
Max. Moment Capacity / Yaw	-
Moment Stiffness / Pitch	-
Moment Stiffness / Roll	-
Parallelism	-

In stock

SKU

TAS-24304L

£276.74

XZ axis leadscrew dovetail translation stages with rectangular form factor, enabling longer travel with fine adjustment.
