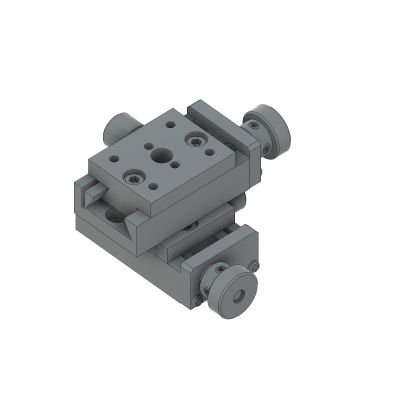

24X30mm Dovetail Bearing, Brass, XY-Axis Stage, Center Leadscrew, +/-4mm, M3 Threads

TAS-24302R

Leadscrew dovetail translation stages with rectangular form factor, enabling longer travel with fine adjustment.

See the Left Handed version of this product

More Information
Name	24X30mm Dovetail Bearing, Brass, XY-Axis Stage, Center Leadscrew, +/-4mm, M3 Threads
Weight	0.4000kgs
Guide	Use adaptor plates for TAS-2060 (SP-127-1 (WEB Reference Catalog Code/W6069) and SP-134 (WEB Reference Catalog Code/W6076) ) to mount post holders and various stages.
Attention	Micrometer brackets may extend above the top surface of some stages. Check drawings for more information.
Image Label	Leadscrew XY Stage 24×30mm Size Metric Threads 8mm Travel Right Hand
Stage Size	24×30mm
Travel	±4mm
Load Capacity	68.7N (7.0kg)
Mounting Thread	M3
Guide Method	Dovetail method
Primary Material	Brass
Finish	Super black chrome
Screw Pitch	0.5mm
Travel Accuracy / Straightness	20μm
Max. Moment Capacity / Pitch	0.5N･m
Max. Moment Capacity / Roll	0.5N･m
Max. Moment Capacity / Yaw	0.5N･m
Moment Stiffness / Pitch	1.5″/N･cm
Moment Stiffness / Roll	1.5″/N･cm
Parallelism	100μm

In stock

SKU

TAS-24302R

£250.36

Leadscrew dovetail translation stages with rectangular form factor, enabling longer travel with fine adjustment.
