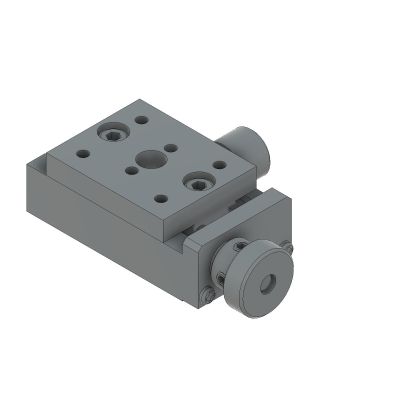

24X30mm Dovetail Bearing, Brass, X-Axis Stage, Center Leadscrew, +/-4mm, M3 Threads

TAS-24301R

Leadscrew dovetail translation stages with rectangular form factor, enabling longer travel with fine adjustment.

See the Left Handed version of this product

More Information
Name	24X30mm Dovetail Bearing, Brass, X-Axis Stage, Center Leadscrew, +/-4mm, M3 Threads
Weight	0.2000kgs
Guide	Use adaptor plates for TAS-2060 (SP-127-1 (WEB Reference Catalog Code/W6069) and SP-134 (WEB Reference Catalog Code/W6076) ) to mount post holders and various stages.
Attention	Micrometer brackets may extend above the top surface of some stages. Check drawings for more information.
Image Label	Leadscrew X Stage 24×30mm Size Metric Threads 8mm Travel Right Hand
Stage Size	24×30mm
Travel	±4mm
Load Capacity	68.7N (7.0kg)
Mounting Thread	M3
Guide Method	Dovetail method
Primary Material	Brass
Finish	Super black chrome
Screw Pitch	0.5mm
Travel Accuracy / Straightness	20μm
Max. Moment Capacity / Pitch	0.5N･m
Max. Moment Capacity / Roll	0.5N･m
Max. Moment Capacity / Yaw	0.5N･m
Moment Stiffness / Pitch	0.51″/N･cm
Moment Stiffness / Roll	1.0″/N･cm
Parallelism	50μm

In stock

SKU

TAS-24301R

£125.42

Leadscrew dovetail translation stages with rectangular form factor, enabling longer travel with fine adjustment.
